Small Signal Schottky Diodes | Status :
Active

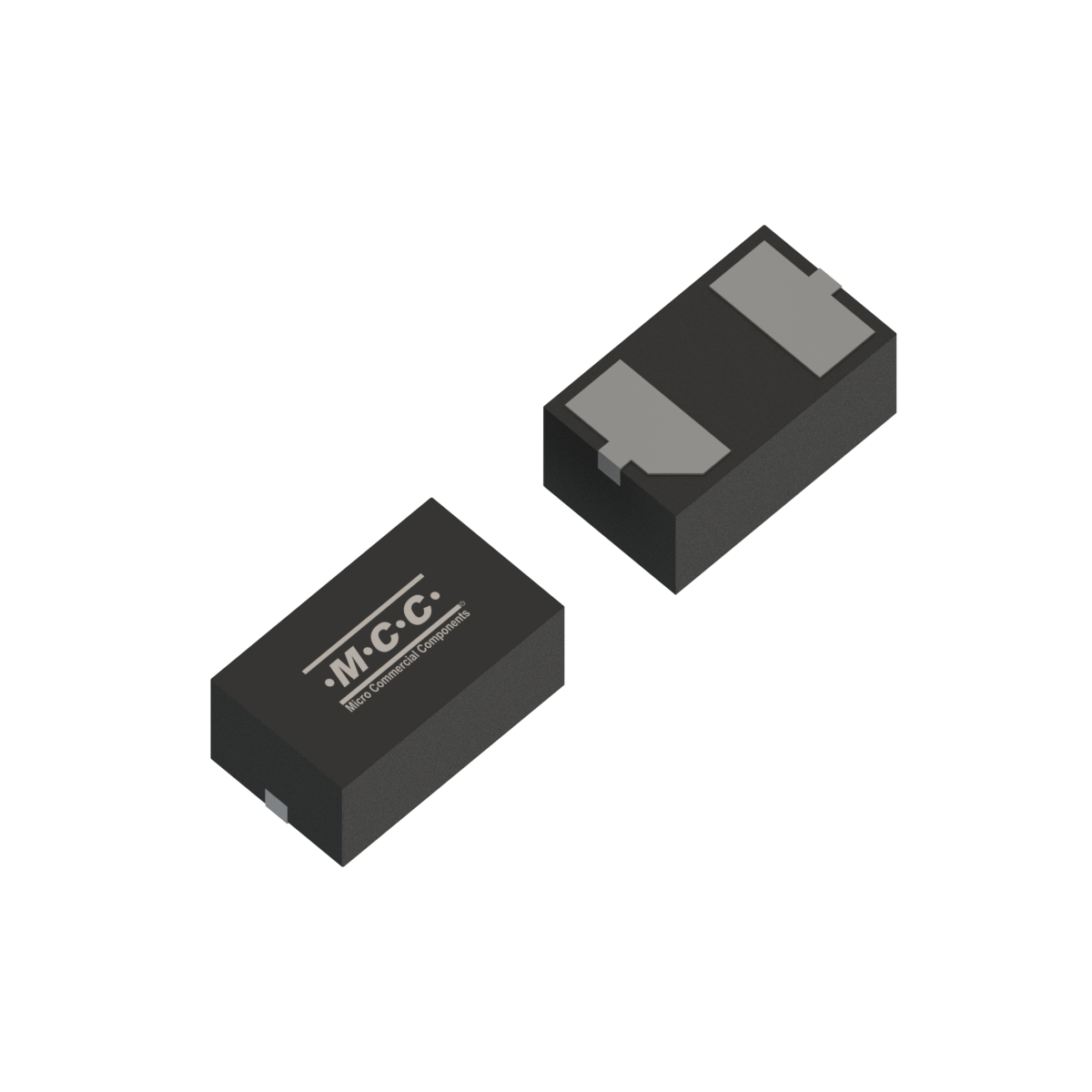

BAT46L2
- Package Type:DFN1006-2L
- Packing Info:Tape&Reel: 10Kpcs/Reel
- Category:Small Signal Schottky Diodes
- MPN:BAT46L2-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|
| BAT46L2 | Single | 0.2 | 100 | 1 | 0.1 | 50 | 0.2 | 125 |
| Part Number BAT46L2 | Number of Functions Single | IF(AV)(A) 0.2 | VRWM (V) 100 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 0.1 |
VR (V) 50 | IF(A) 0.2 | Tj [max] (°C) 125 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| BAT46L2 | DFN1006-2L | DFN1006-2L | 0.0010 | 41 | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
0.00 | 0.0 |
