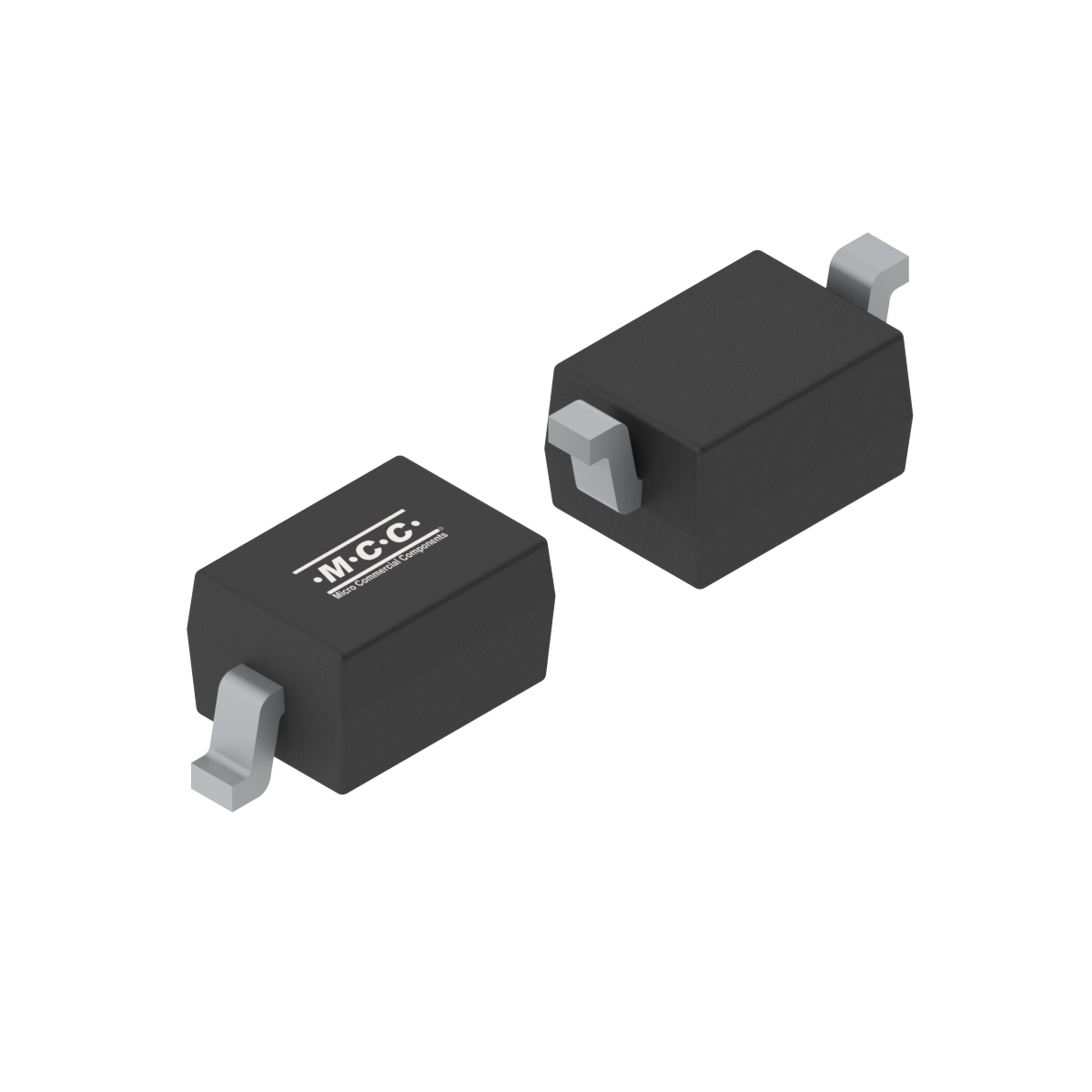

Small Signal Schottky Diodes | Status : Active

BAT42WS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAT42WS Single 0.2 30 1 0.5 25 0.2 125
Part Number BAT42WS Number of Functions Single IF(AV)(A)  0.2 VRWM (V)  30 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  0.5 		VR (V)  25 IF(A)  0.2 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAT42WS SOD-323 SOD-323 0.0040 S7 Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
081021-1 MCC will add new wafer source for BAT42&BAT43&BAR43 series PDF 08/10/2021
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
