Small Signal Schottky Diodes | Status :
Active

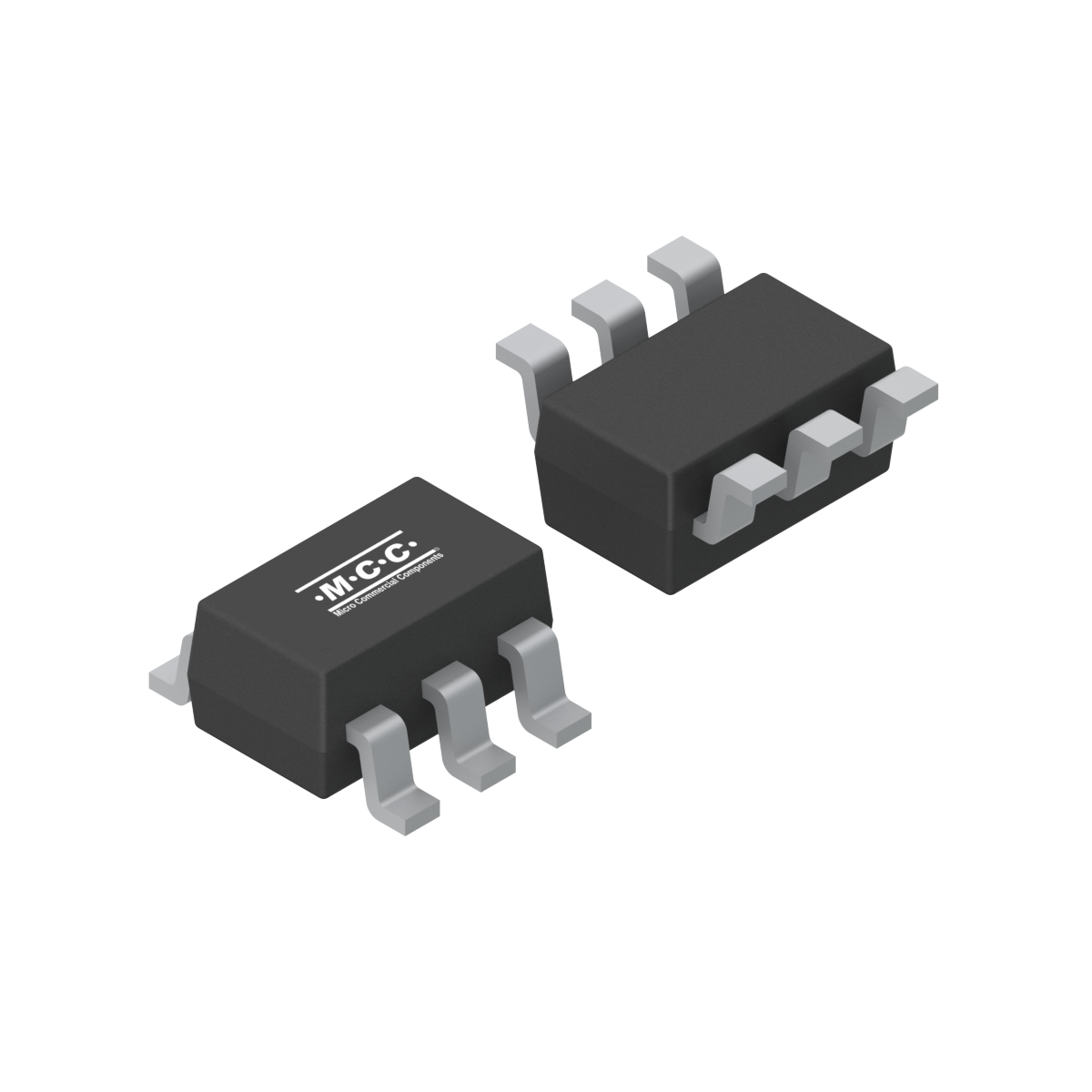

BAS70DW-06
- Package Type:SOT-363
- Packing Info:Tape : 3K/Reel, 120K/Ctn
- Category:Small Signal Schottky Diodes
- MPN:BAS70DW-06-TP
Product Detail
| Part Number | Number of Functions | Configuration | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| BAS70DW-06 | Dual | Common Anode | 0.07 | 70 | 1 | 0.1 | 50 | 0.015 | 125 |
| Part Number BAS70DW-06 | Number of Functions Dual | Configuration Common Anode | IF(AV)(A) 0.07 | VRWM (V) 70 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 0.1 |
VR (V) 50 | IF(A) 0.015 | Tj [max] (°C) 125 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
17486.81 | 6.5 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 021126-1 | Additional new 2nd source |
|
02/11/2026 |
| 042723-1 | Additional Qualified Assembly and Test(A/T) Site for SOT-363 Parts |
|
04/27/2023 |
| 080111 | Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 |
|
08/15/2011 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
