Small Signal Schottky Diodes | Status : Active

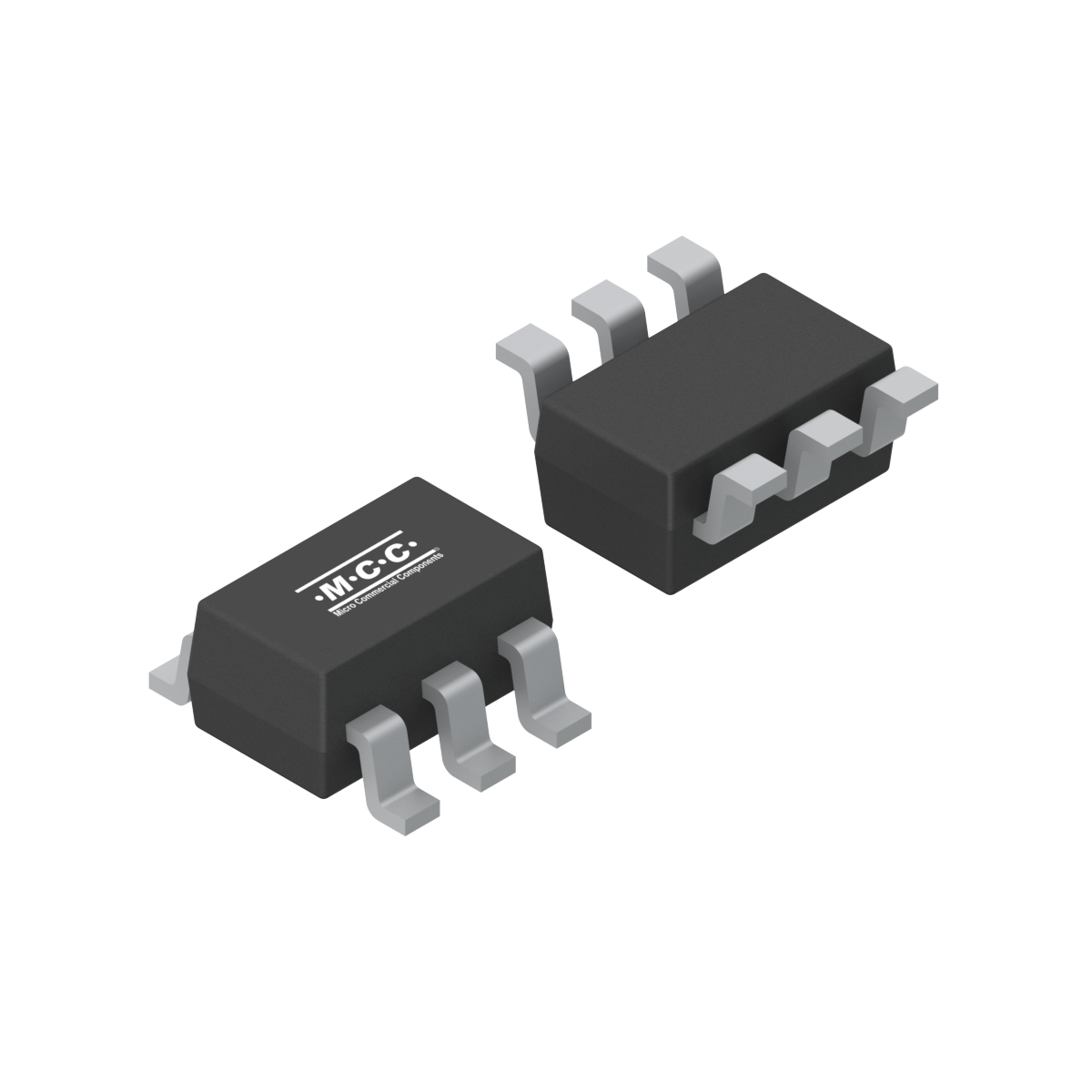

BAS40TW

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAS40TW Triple Isolated 0.2 40 1 0.2 30 0.04 125
Part Number BAS40TW Number of Functions Triple Configuration Isolated IF(AV)(A)  0.2 VRWM (V)  40 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  0.2 		VR (V)  30 IF(A)  0.04 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAS40TW SOT-363 SOT-363 0.0090 K43 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
042723-1 Additional Qualified Assembly and Test(A/T) Site for SOT-363 Parts PDF 04/27/2023
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
