Small Signal Schottky Diodes | Status : Active

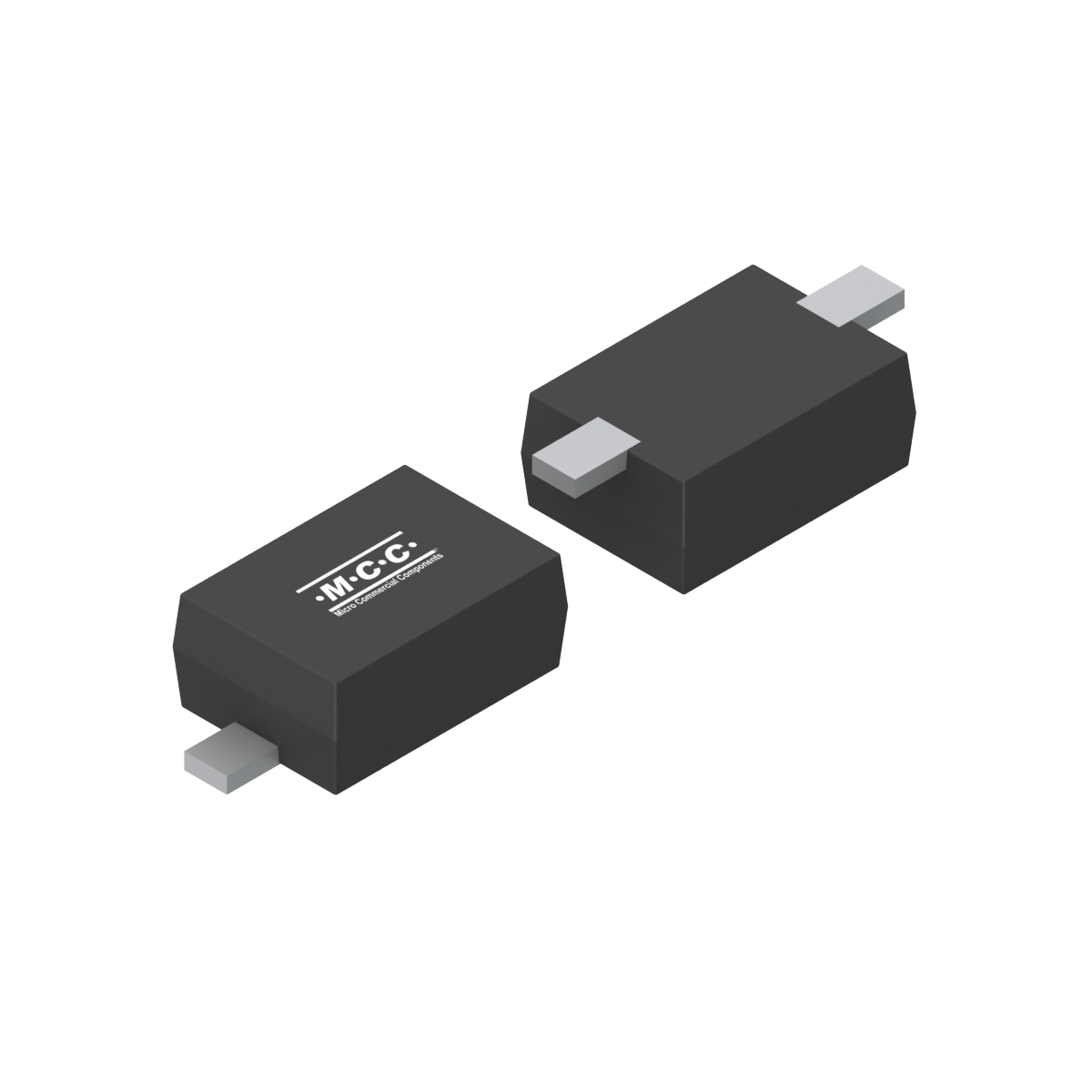

B5819WSL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
B5819WSL Single 1 40 0.6 50 40 1 125
Part Number B5819WSL Number of Functions Single IF(AV)(A)  1 VRWM (V)  40 VF
(V) [max]@IF(A)  0.6 		IR (uA) [max] @
VR  50 		VR (V)  40 IF(A)  1 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
B5819WSL SOD-323FL SOD-323FL 0.0034 SL Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 19984.92 5.7
