Schottky Barrier Rectifiers | Status : Preferred
Automotive

MBRP10100Q

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRP10100Q Single 10 100 0.85 10 150 100 10 175
Part Number MBRP10100Q Number of Functions Single IF(AV)(A)  10 VRWM (V)  100 VF
(V) [max]@IF(A)  0.85 		IR (uA)  [max] @
VR  10 		IFSM (A)  150 VR (V)  100 IF(A)  10 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

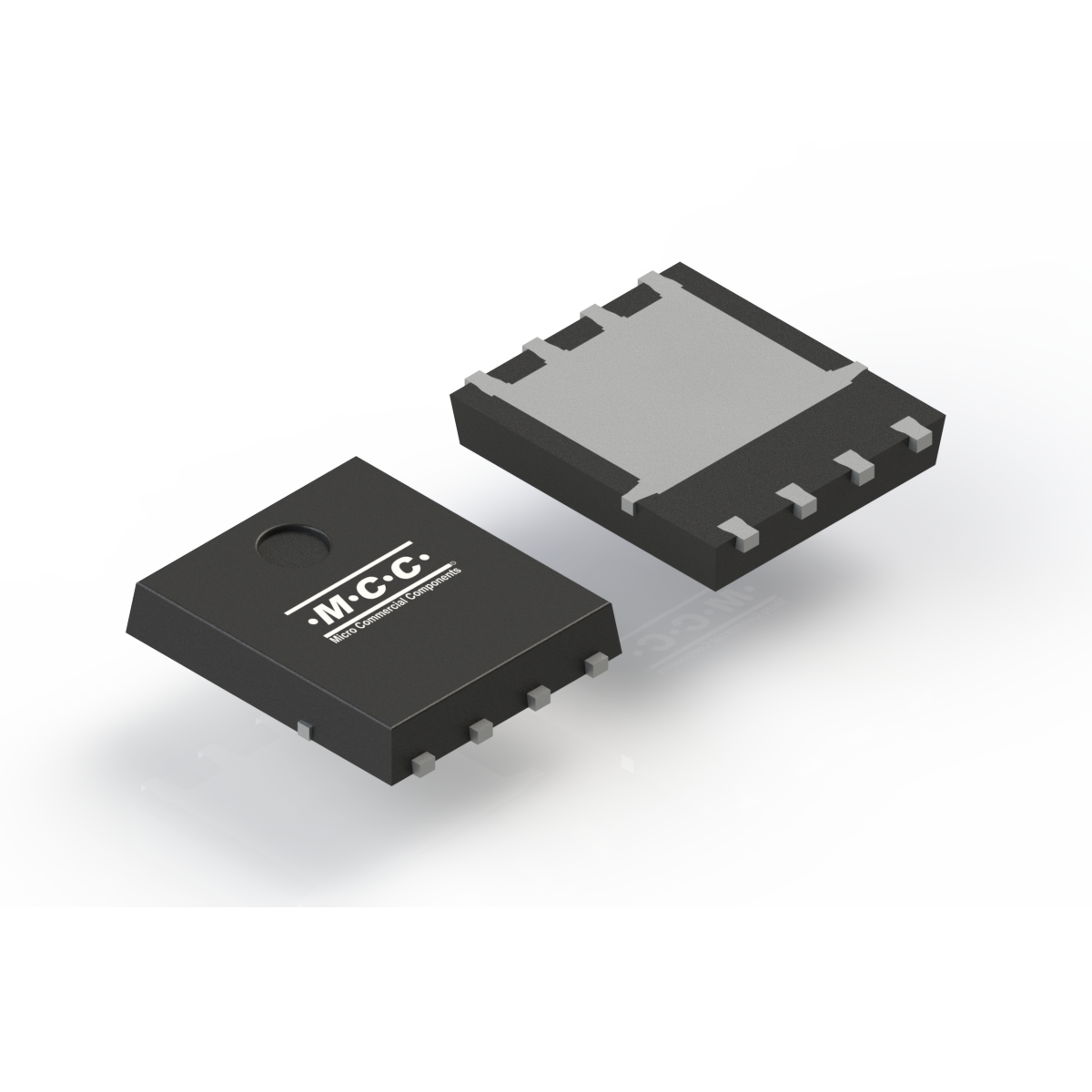

MBRP10100Q DFN5060 DFN5060 0.0875 MBRP10100 Tape&Reel:5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
