Schottky Barrier Rectifiers | Status : Preferred
Automotive

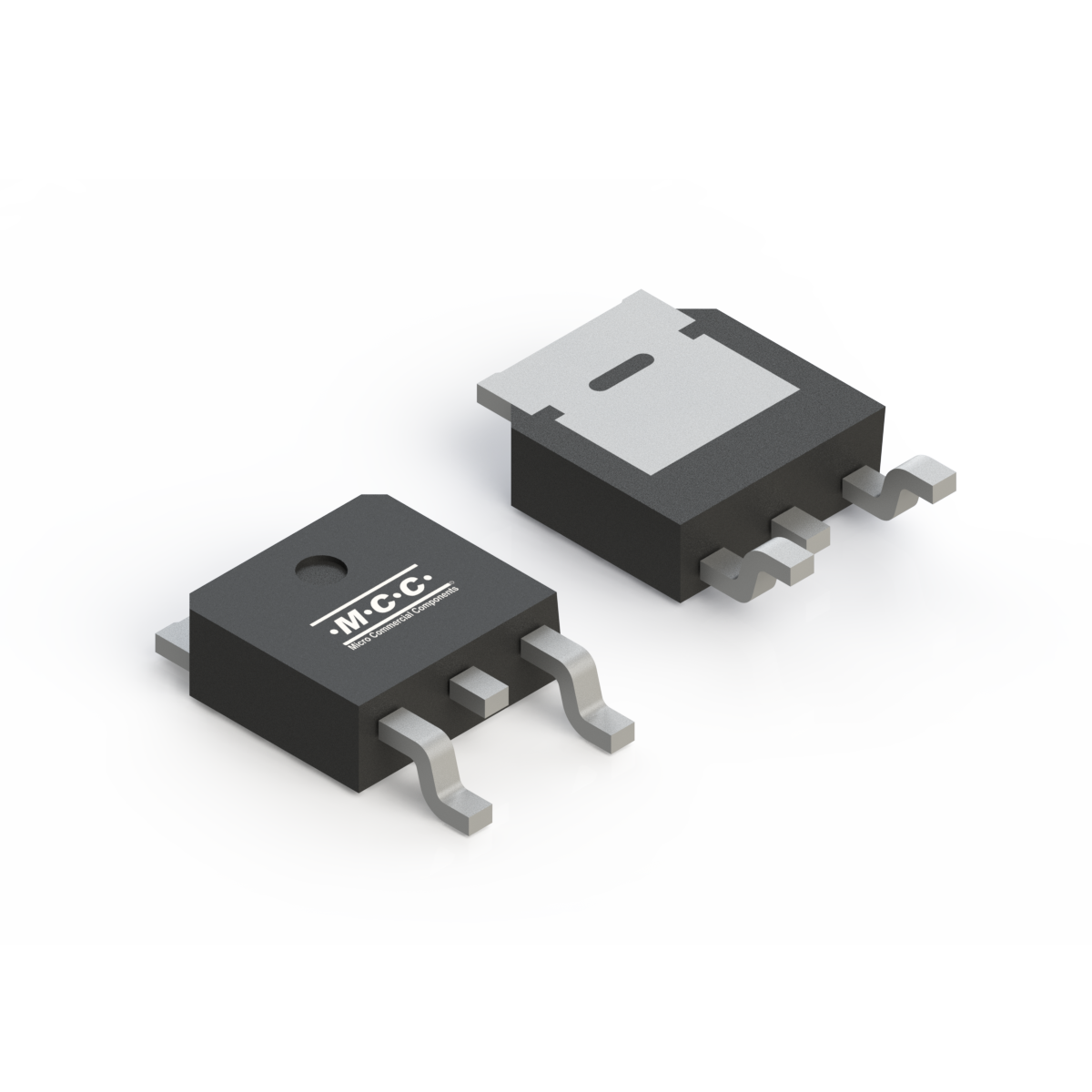

MBRD20100CTQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRD20100CTQ Dual Common Cathode 20 100 0.85 10 130 100 10 175
Part Number MBRD20100CTQ Number of Functions Dual Configuration Common Cathode IF(AV)(A)  20 VRWM (V)  100 VF
(V) [max]@IF(A)  0.85 		IR (uA)  [max] @
VR  10 		IFSM (A)  130 VR (V)  100 IF(A)  10 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBRD20100CTQ DPAK DPAK 0.3252 MBRD20100CT Tape:2.5K/Reel,25K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
