Schottky Barrier Rectifiers | Status : Active

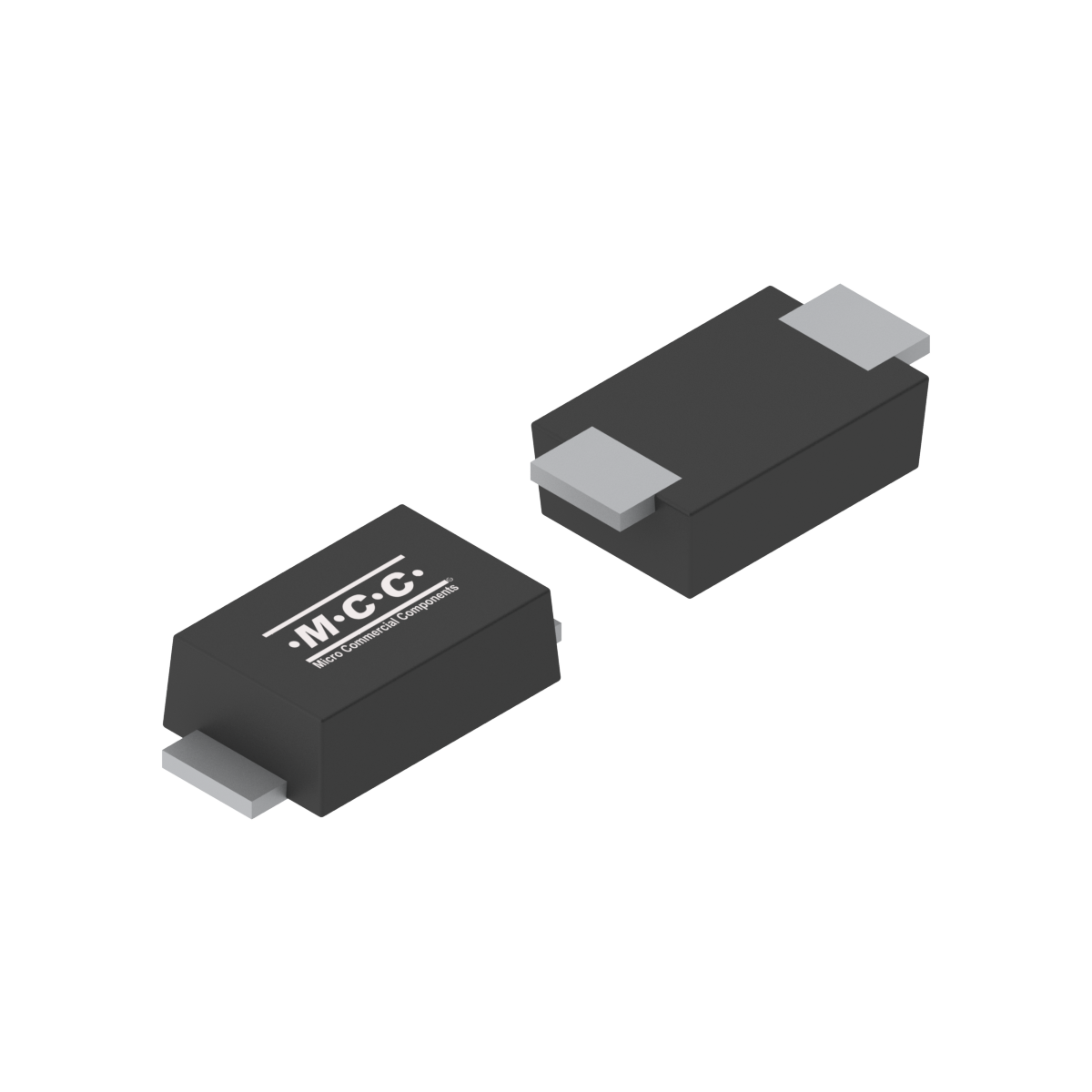

SS24FL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SS24FL Single 2 40 0.5 100 50 40 2 125
Part Number SS24FL Number of Functions Single IF(AV)(A)  2 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  100 		IFSM (A)  50 VR (V)  40 IF(A)  2 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SS24FL DO-221AC DO-221AC 0.0350 SS24 Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 5233.80 21.8

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
