Schottky Barrier Rectifiers | Status : Active

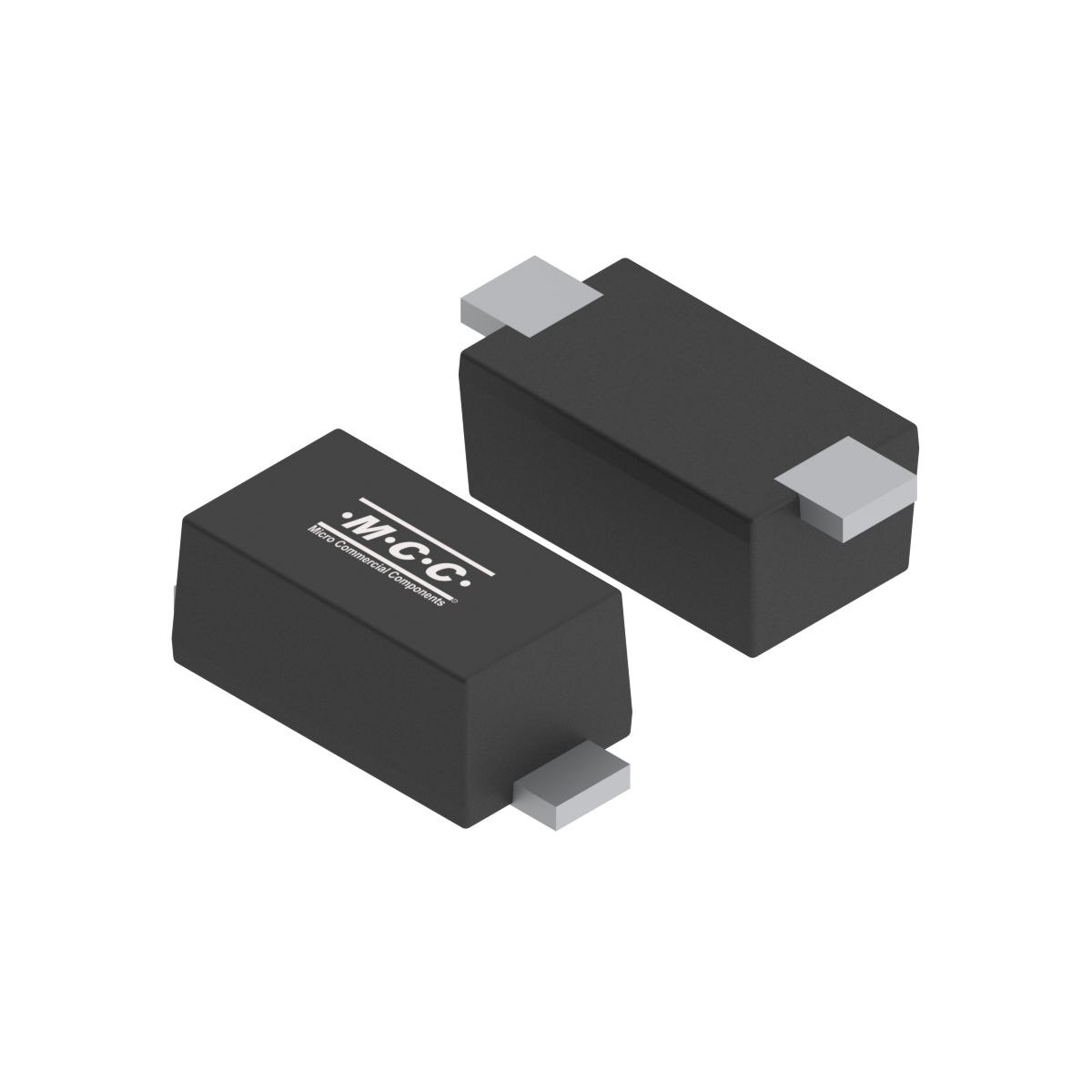

SMD34PL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD34PL Single 3 40 0.5 100 80 40 3 125
Part Number SMD34PL Number of Functions Single IF(AV)(A)  3 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  100 		IFSM (A)  80 VR (V)  40 IF(A)  3 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD34PL SOD-123FL SOD-123FL 0.0180 SM34 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
041825-2 Additional Assembly & test centre PDF 04/18/2025
