Schottky Barrier Rectifiers | Status : Active

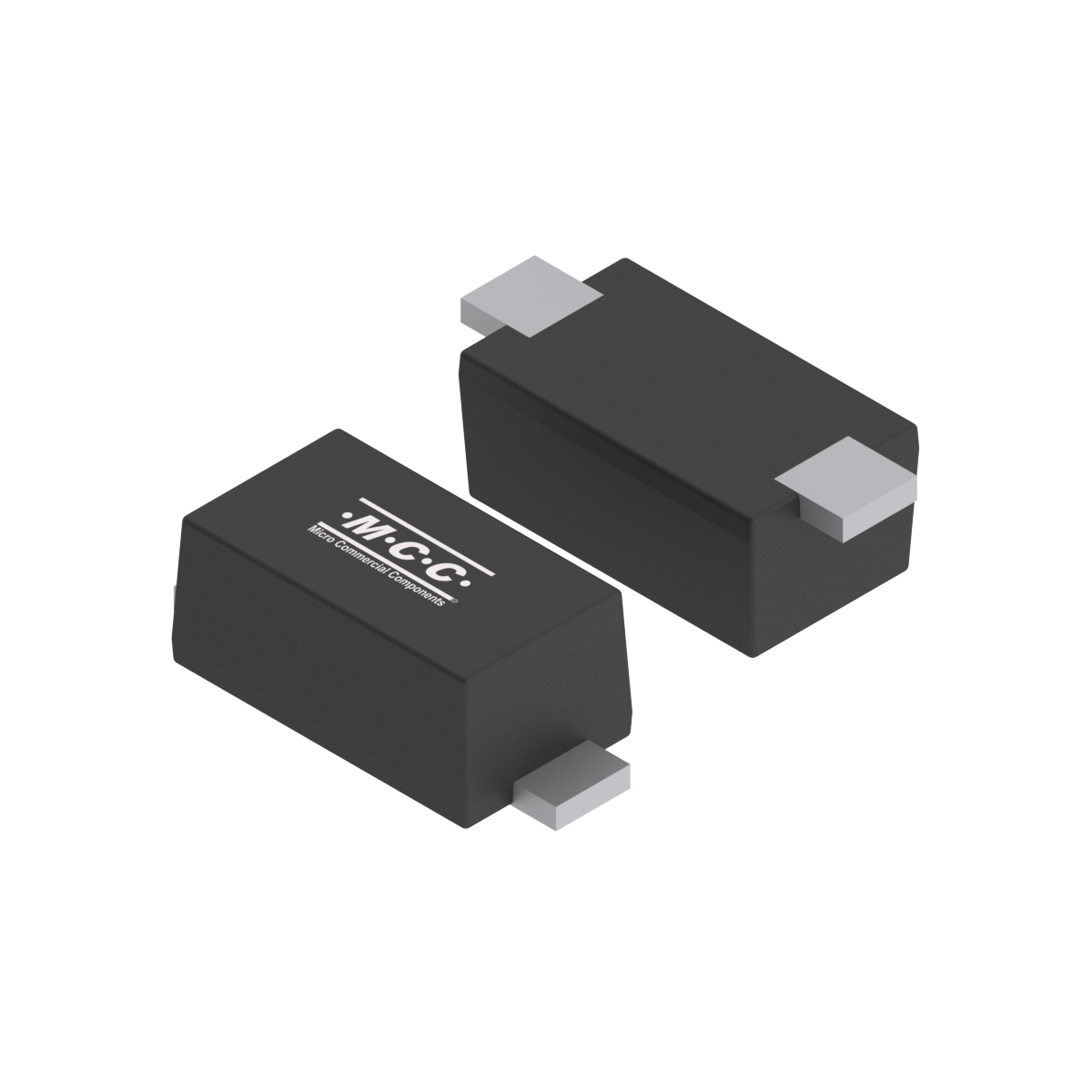

SMD24PL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD24PL Single 2 40 0.5 100 50 40 2 125
Part Number SMD24PL Number of Functions Single IF(AV)(A)  2 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  100 		IFSM (A)  50 VR (V)  40 IF(A)  2 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD24PL SOD-123FL SOD-123FL 0.0180 M4 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 5981.49 19.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
010925-1 Additional assembly & test centre PDF 01/09/2025
080115-1 MCC Introduces Auto-Soldering Process For SOD-123FL Package PDF 08/01/2015
092009 "Powerlite-123" Package Type Name Revise PDF 01/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
