Schottky Barrier Rectifiers | Status : Active
Automotive

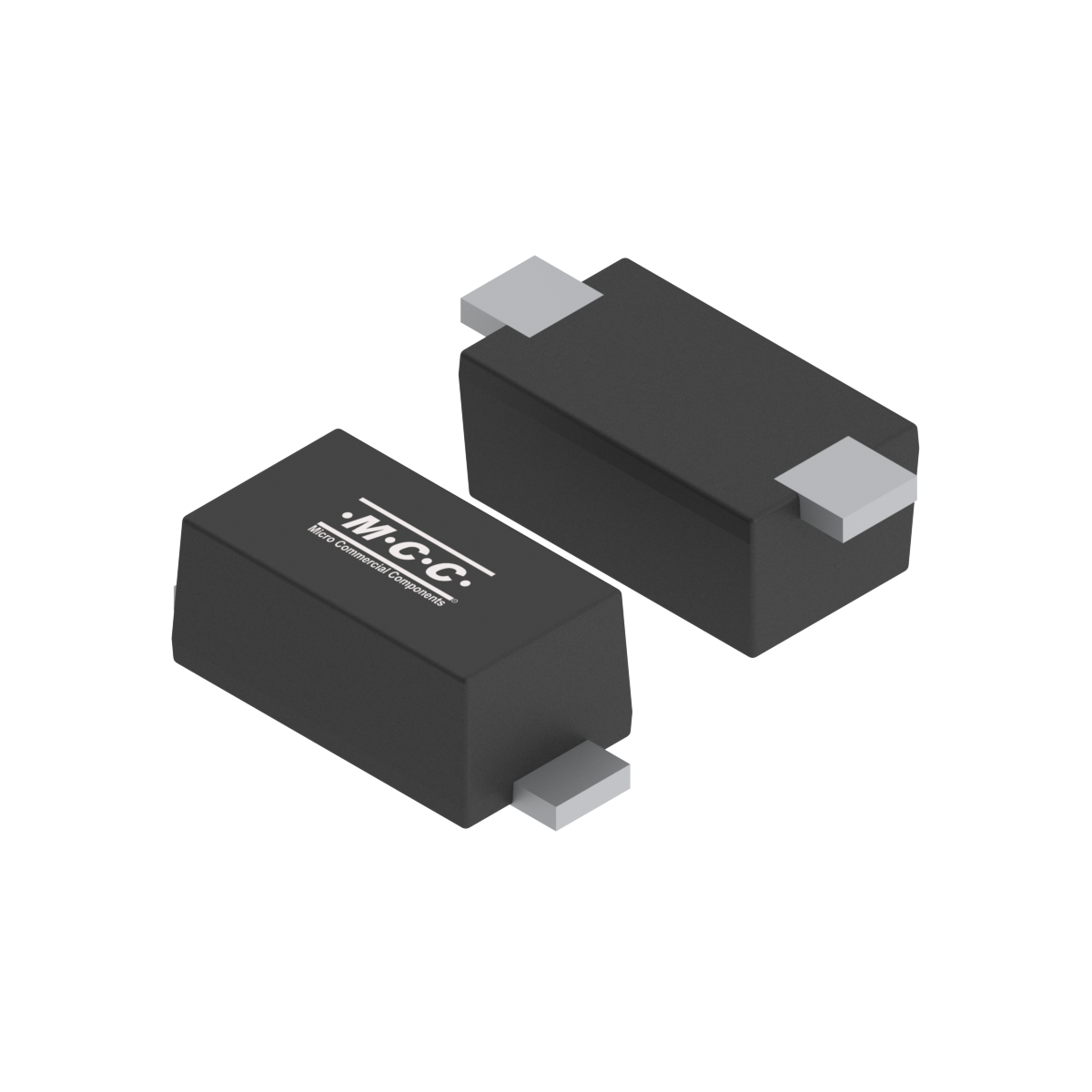

SMD18PLHE3

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD18PLHE3 Single 1 80 0.85 100 30 80 1 125
Part Number SMD18PLHE3 Number of Functions Single IF(AV)(A)  1 VRWM (V)  80 VF
(V) [max]@IF(A)  0.85 		IR (uA)  [max] @
VR  100 		IFSM (A)  30 VR (V)  80 IF(A)  1 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD18PLHE3 SOD-123FL SOD-123FL 0.0180 D8 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
011524-1 Product design PDF 01/15/2024
