Schottky Barrier Rectifiers | Status : Active

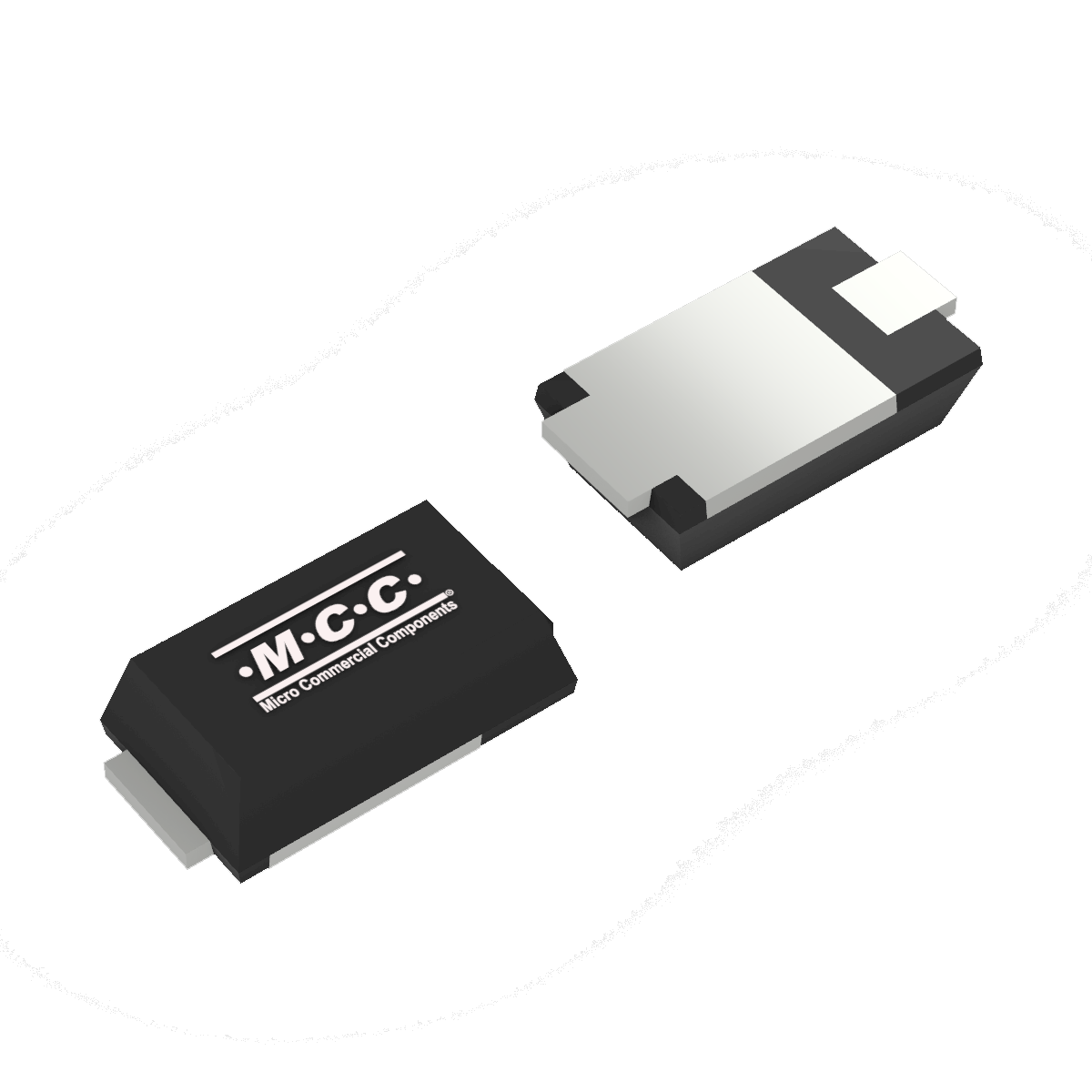

SL26HL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SL26HL Single 2 60 0.55 100 50 60 2 150
Part Number SL26HL Number of Functions Single IF(AV)(A)  2 VRWM (V)  60 VF
(V) [max]@IF(A)  0.55 		IR (uA)  [max] @
VR  100 		IFSM (A)  50 VR (V)  60 IF(A)  2 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SL26HL SOD-123HL SOD-123HL 0.0169 L26 Tape&Reel:2.5 Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
