Schottky Barrier Rectifiers | Status : Active

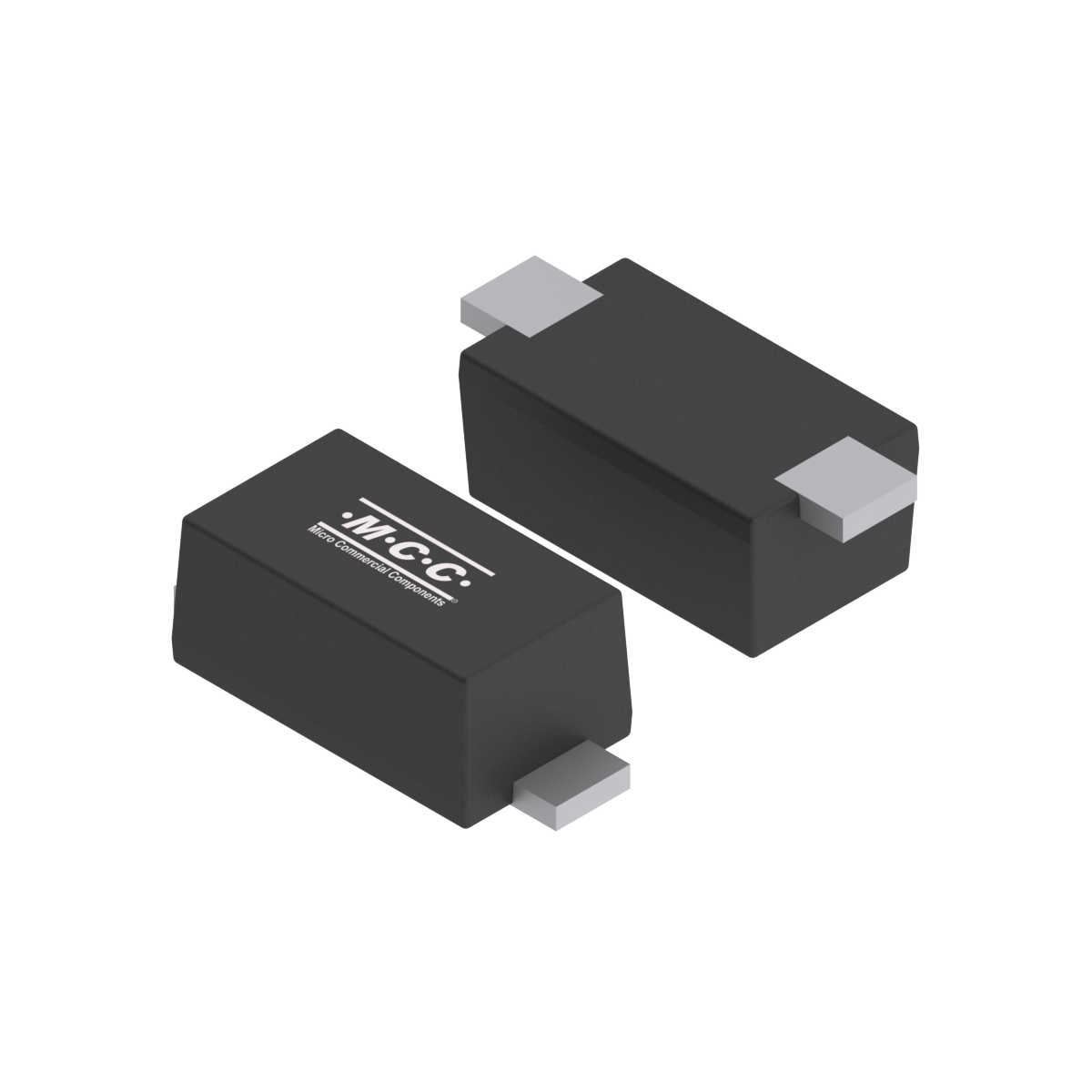

SL110PL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SL110PL Single 1 100 0.6 100 28 100 1 150
Part Number SL110PL Number of Functions Single IF(AV)(A)  1 VRWM (V)  100 VF
(V) [max]@IF(A)  0.6 		IR (uA)  [max] @
VR  100 		IFSM (A)  28 VR (V)  100 IF(A)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SL110PL SOD-123FL SOD-123FL 0.0180 SL110 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
010925-1 Additional assembly & test centre PDF 01/09/2025
