Schottky Barrier Rectifiers | Status : Preferred
Automotive

MBRD2045CTQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRD2045CTQ Dual Common Cathode 20 45 0.63 100 120 45 10 150
Part Number MBRD2045CTQ Number of Functions Dual Configuration Common Cathode IF(AV)(A)  20 VRWM (V)  45 VF
(V) [max]@IF(A)  0.63 		IR (uA)  [max] @
VR  100 		IFSM (A)  120 VR (V)  45 IF(A)  10 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

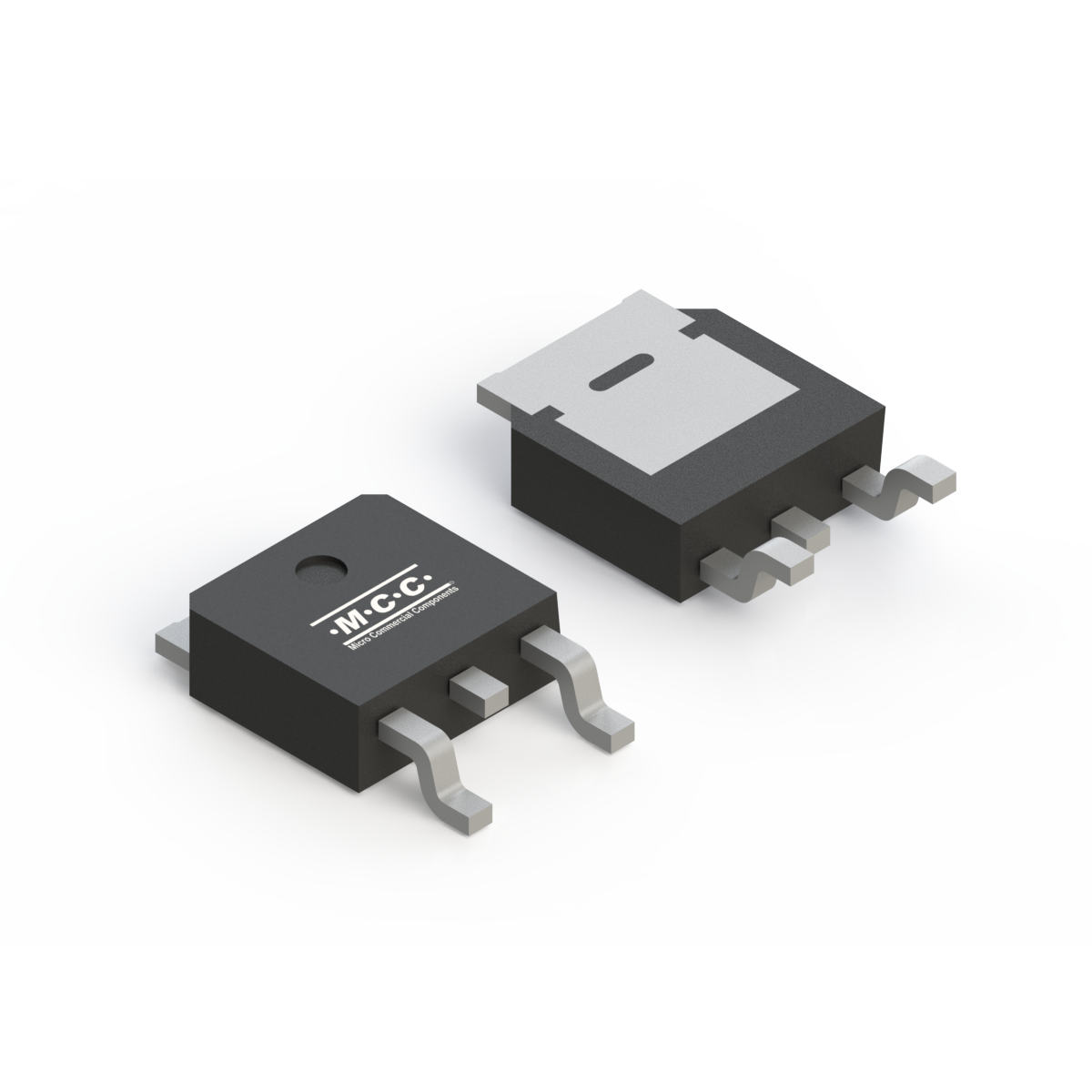

MBRD2045CTQ DPAK DPAK 0.3252 MBRD2045CT Tape:2.5K/Reel,25K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0

Similar Recommendations

Part Number Category Package Type Status Datasheet
MBR1045 SCHOTTKY BARRIER RECTIFIERS TO-220AC Active Datasheet
MBR1645 SCHOTTKY BARRIER RECTIFIERS TO-220AC Active Datasheet
MBR20100CT SCHOTTKY BARRIER RECTIFIERS TO-220AB Active Datasheet
MBR2045CT SCHOTTKY BARRIER RECTIFIERS TO-220AB Active Datasheet
