Schottky Barrier Rectifiers | Status : Preferred
Automotive

MBRD20200CTQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRD20200CTQ Dual Common Cathode 20 200 0.92 10 120 200 10 175
Part Number MBRD20200CTQ Number of Functions Dual Configuration Common Cathode IF(AV)(A)  20 VRWM (V)  200 VF
(V) [max]@IF(A)  0.92 		IR (uA)  [max] @
VR  10 		IFSM (A)  120 VR (V)  200 IF(A)  10 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

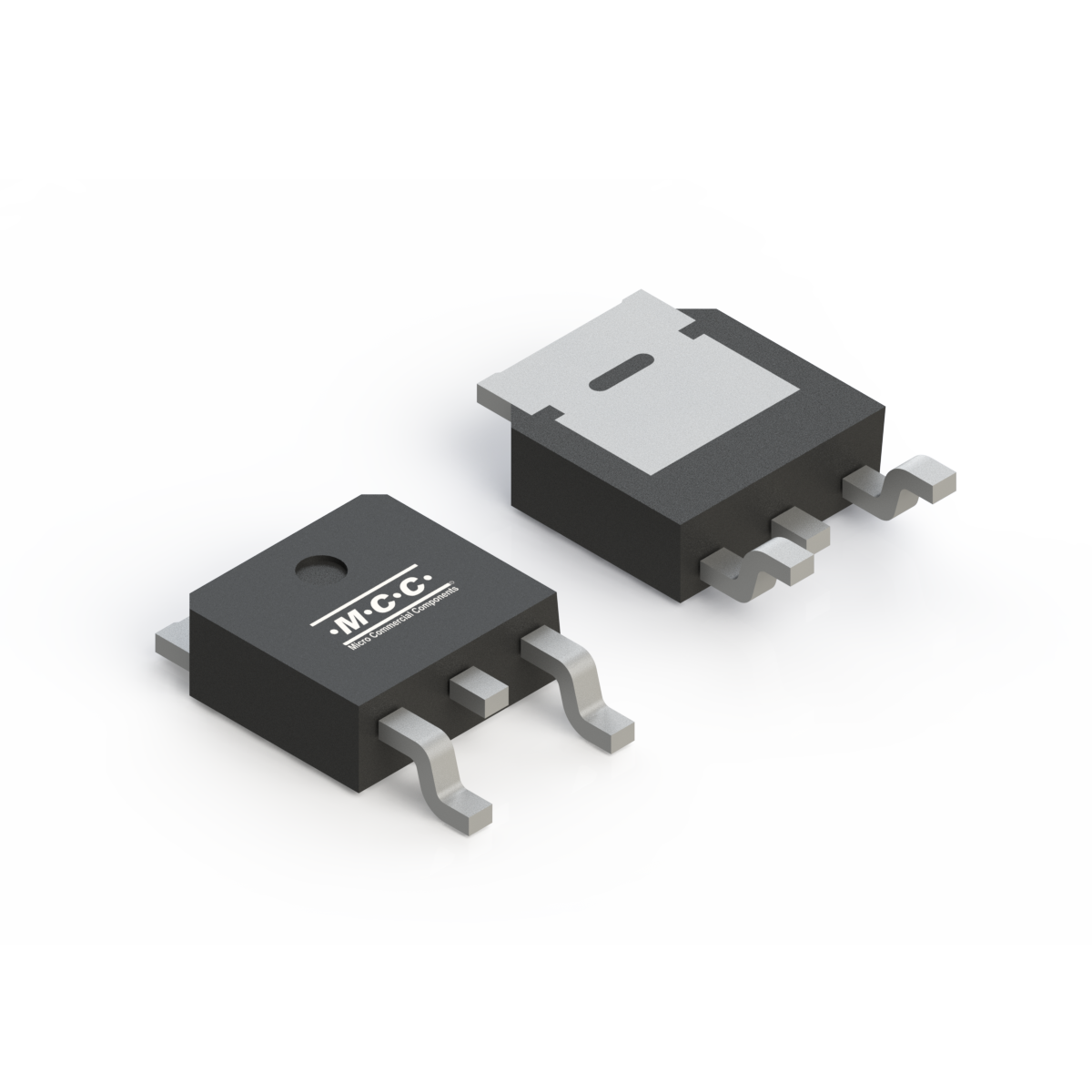

MBRD20200CTQ DPAK DPAK 0.3252 MBRD20200CT Tape:2.5K/Reel,25K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
