Schottky Barrier Rectifiers | Status : Active

MBRD15100

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRD15100 Single 15 100 0.84 100 150 100 15 150
Part Number MBRD15100 Number of Functions Single IF(AV)(A)  15 VRWM (V)  100 VF
(V) [max]@IF(A)  0.84 		IR (uA)  [max] @
VR  100 		IFSM (A)  150 VR (V)  100 IF(A)  15 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

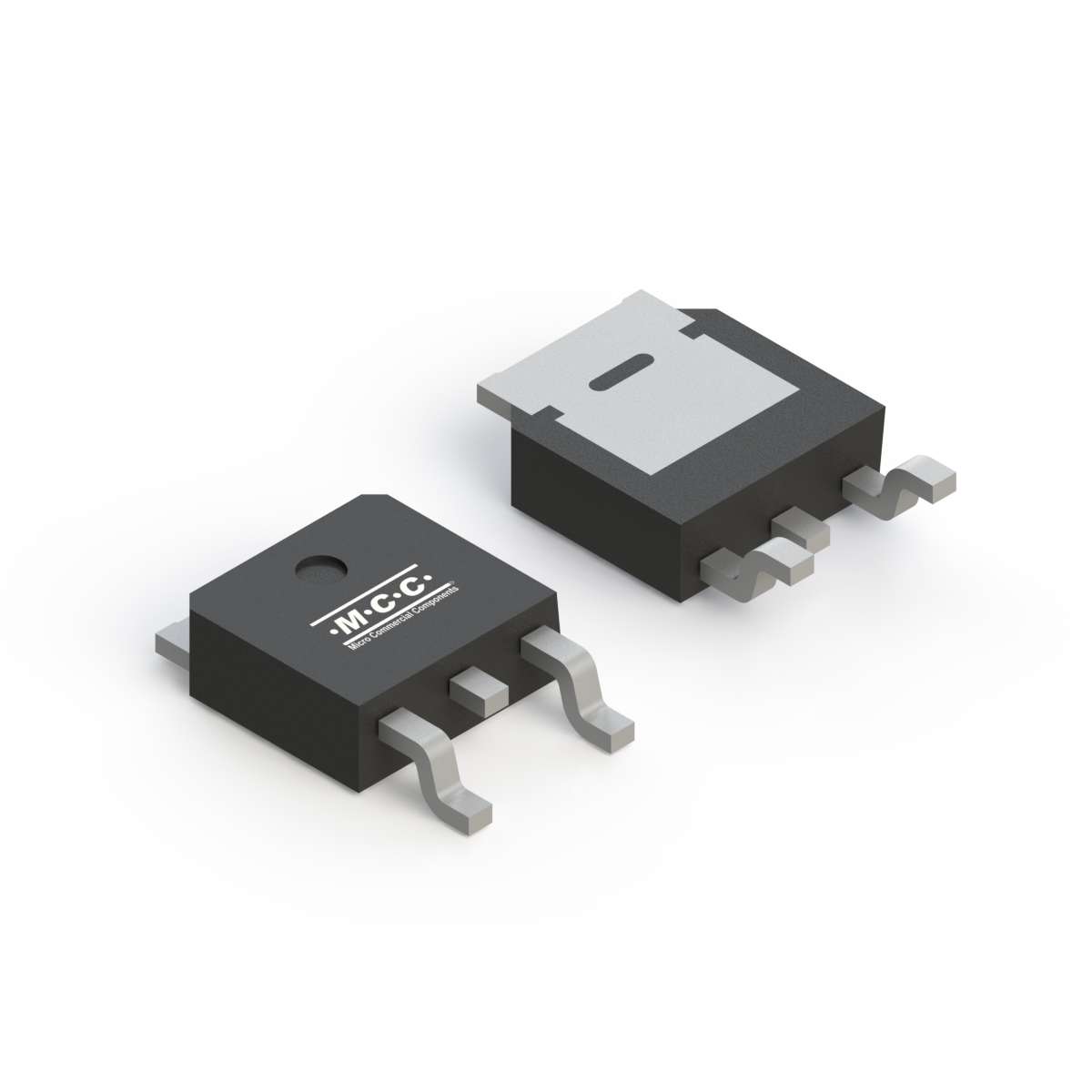

MBRD15100 DPAK DPAK 0.3252 MBRD15100 Tape:2.5K/Reel,25K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 14988.69 7.6
