Schottky Barrier Rectifiers | Status : Active

MBR20150FCT

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBR20150FCT Dual 20 150 0.92 25 150 150 10 150
Part Number MBR20150FCT Number of Functions Dual IF(AV)(A)  20 VRWM (V)  150 VF
(V) [max]@IF(A)  0.92 		IR (uA)  [max] @
VR  25 		IFSM (A)  150 VR (V)  150 IF(A)  10 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

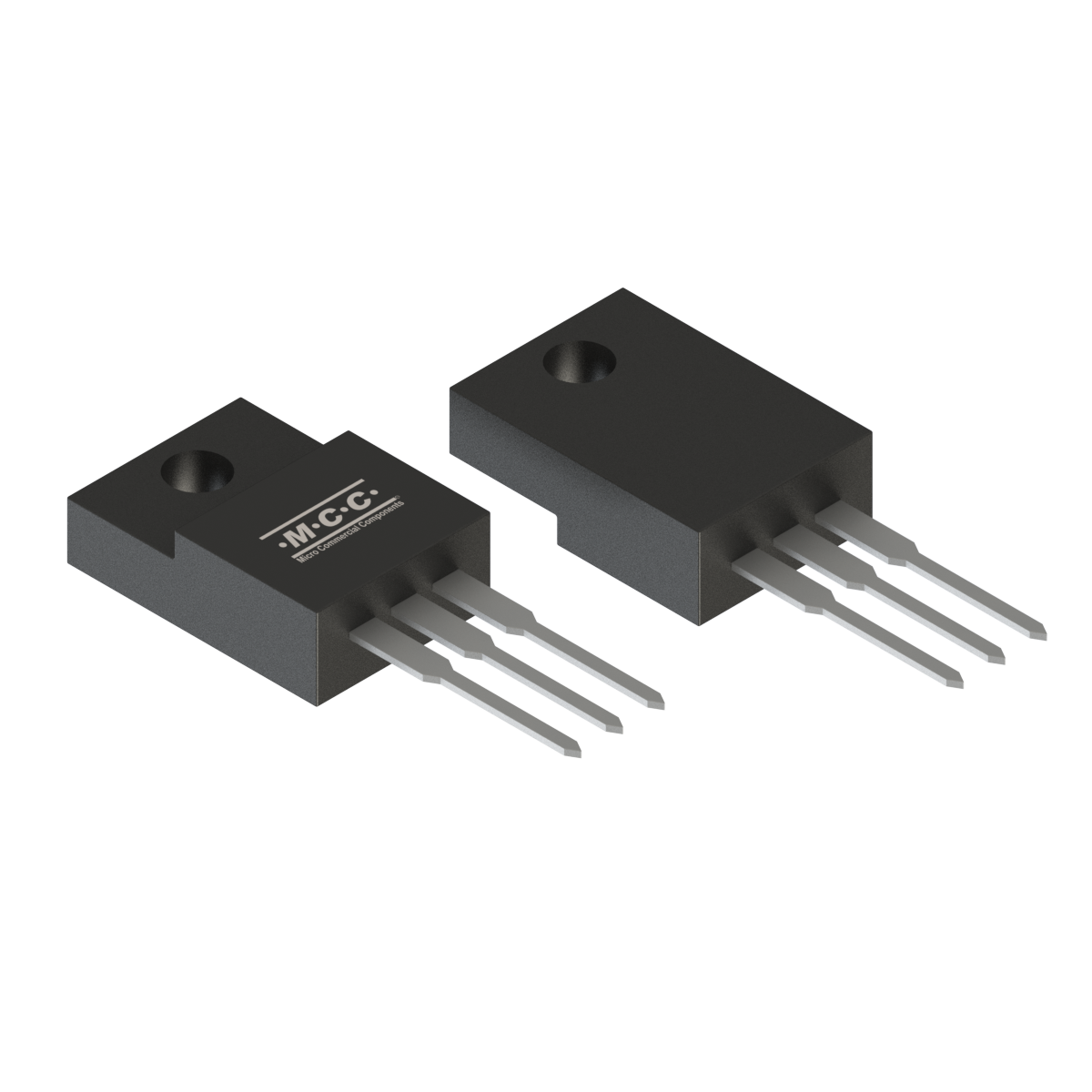

MBR20150FCT ITO-220AB ITO-220AB 1.6200 MBR20150FCT

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
N/A 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
080622-1 ITO-220 Series Package Pin Dimension Change PDF 08/06/2022
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
