Bridge Rectifiers | Status : Preferred

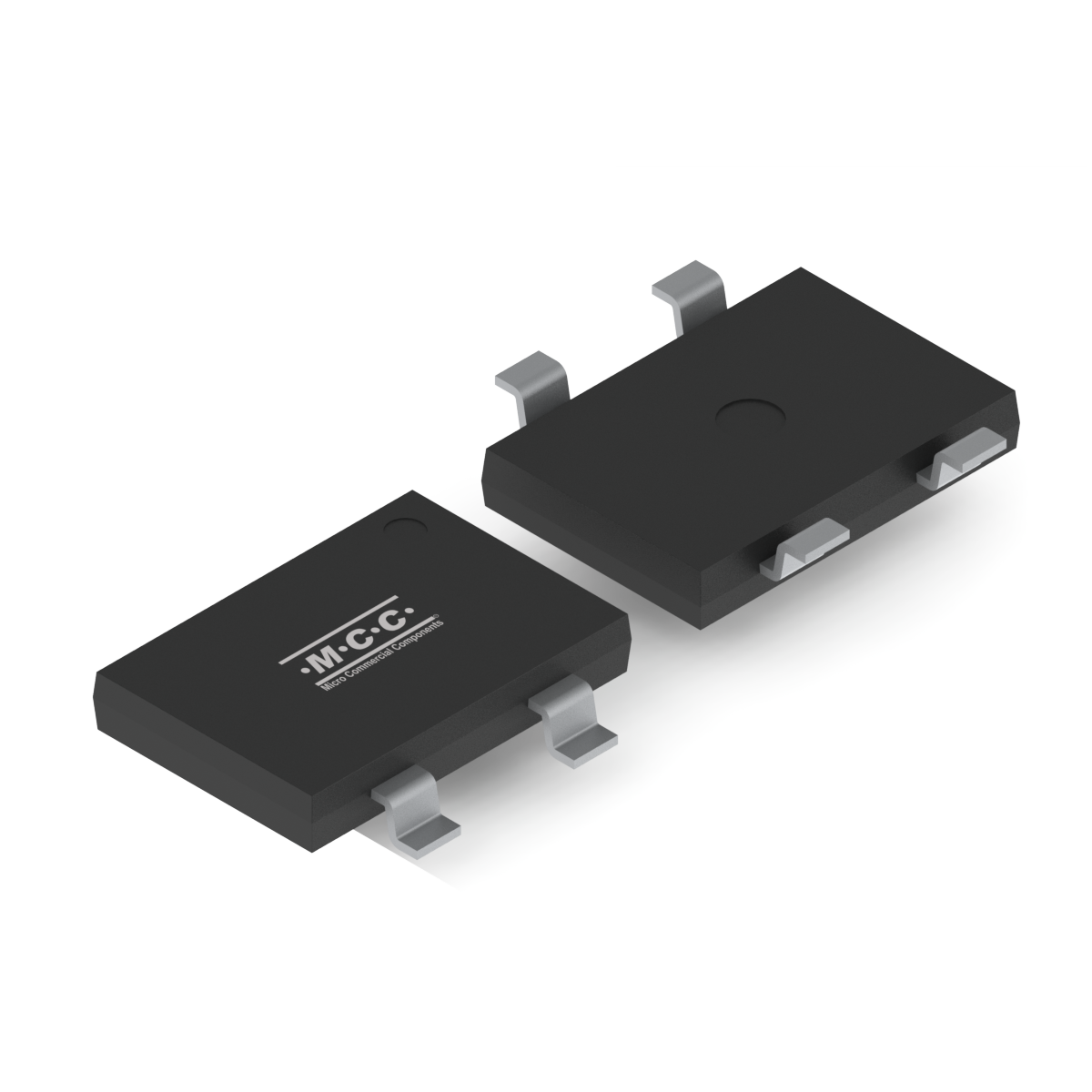

TBL408L

  • Package Type:TBL
  • Packing Info:Tape&Reel:1.8Kpcs/Reel;
  • Category:Bridge Rectifiers
  • MPN:TBL408L-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
TBL408L 1-Phase Bridge 4 800 0.92 5 150 2 800 150
Part Number TBL408L Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  800 VF
(V) [max]@IF(A)  0.92 		IR (uA)  [max] @
VR  5 		IFSM (A)  150 IF(A)  2 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
TBL408L TBL TBL 0.3610 TBL408L Tape&Reel:1.8Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
