Bridge Rectifiers | Status :
Preferred

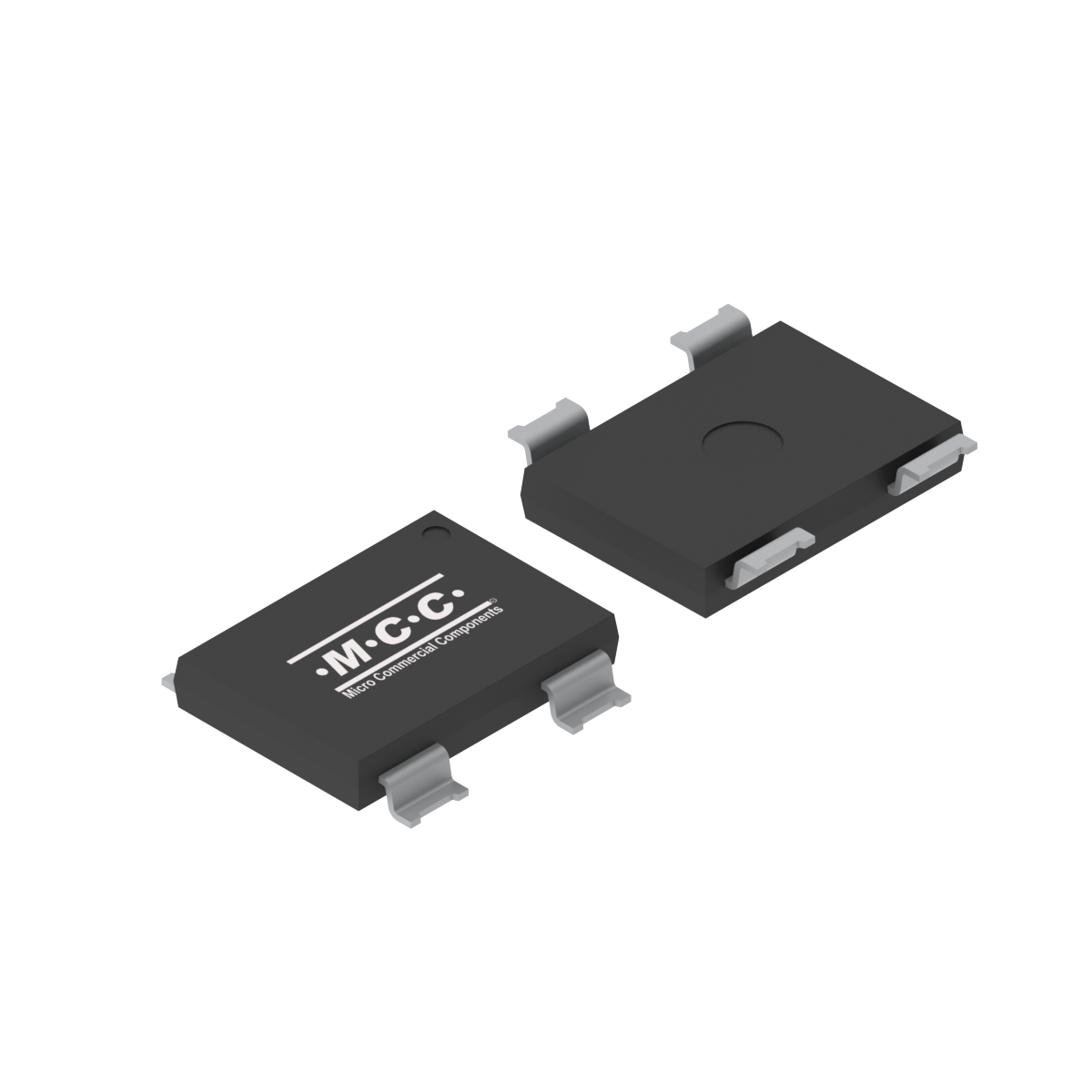

RTBSA40M
- Package Type:TBSG
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:Bridge Rectifiers
- MPN:RTBSA40M-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| RTBSA40M | 1-Phase Bridge | 4 | 1000 | 1.3 | 5 | 120 | 2 | 1000 | 150 |
| Part Number RTBSA40M | Number of Functions 1-Phase Bridge | IF(AV)(A) 4 | VRWM (V) 1000 |
VF (V) [max]@IF(A) 1.3 |
IR (uA) [max] @ VR 5 |
IFSM (A) 120 | IF(A) 2 | VR (V) 1000 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| RTBSA40M | TBSG |
TBSG
|
0.0000 | RTBSA40M | Tape&Reel:2.5Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
0.00 | 0.0 |
