Bridge Rectifiers | Status : Preferred

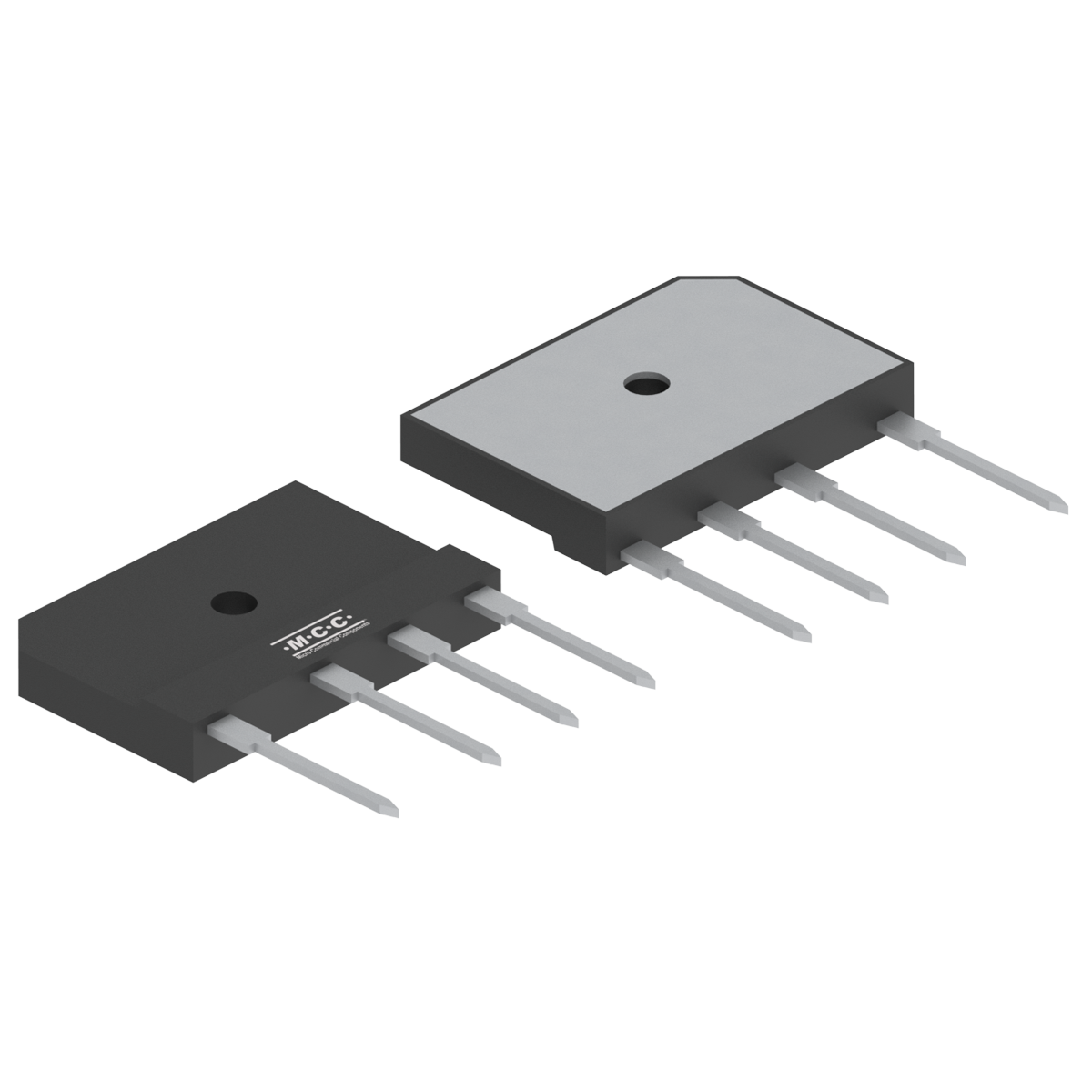

PB5016

  • Package Type:PB
  • Packing Info:Tube:15pcs/Tube,750pcs/Box,1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:PB5016-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
PB5016 1-Phase Bridge 50 1600 1.1 5 500 25 1600 150
Part Number PB5016 Number of Functions 1-Phase Bridge IF(AV)(A)  50 VRWM (V)  1600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		IFSM (A)  500 IF(A)  25 VR (V)  1600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
PB5016 PB PB 7.5503 PB5016

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report N/A Halogen Free 0.00 0.0
