Bridge Rectifiers | Status : Active

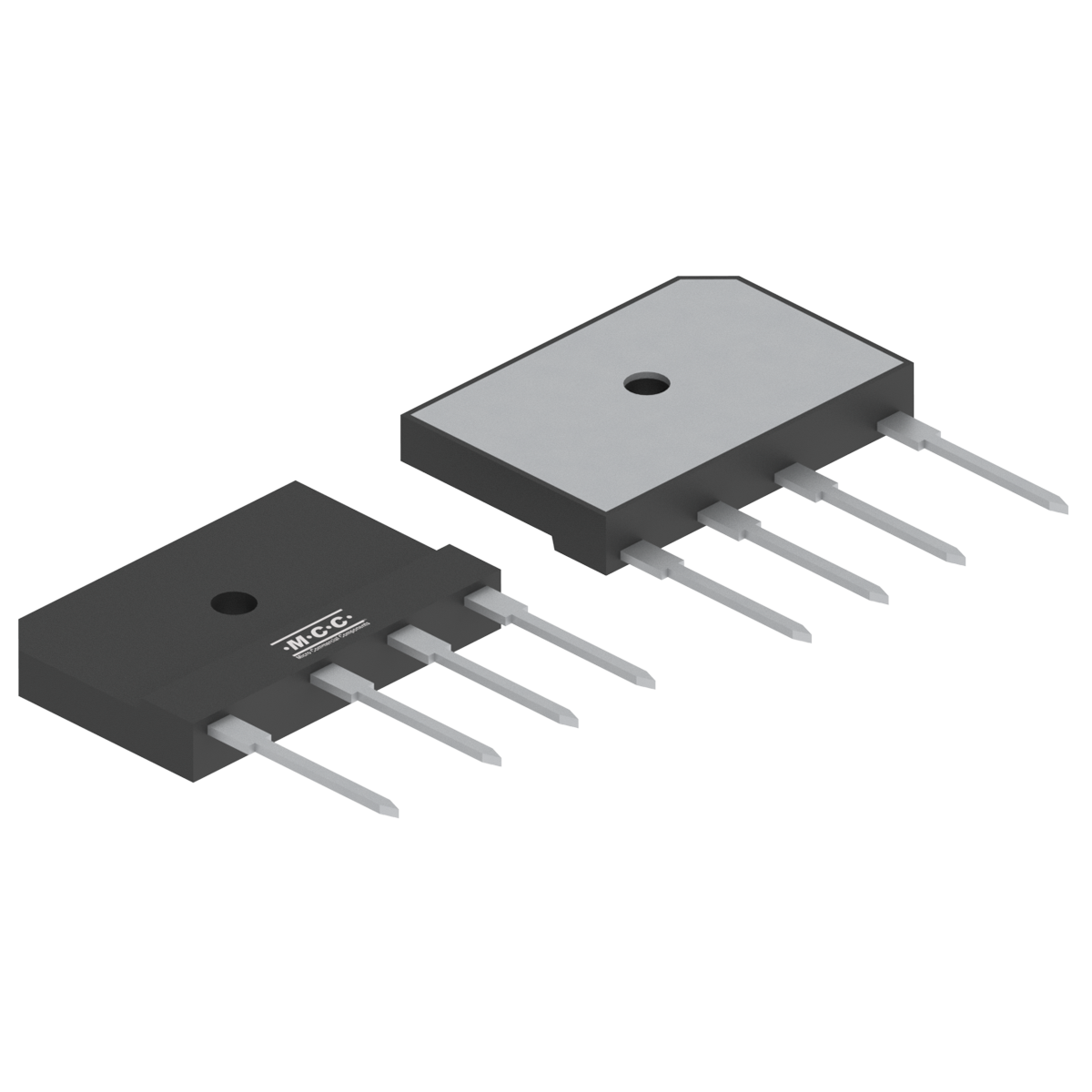

EPB3506

  • Package Type:PB
  • Packing Info:Tube:15pcs/Tube,750pcs/Box,1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:EPB3506-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
EPB3506 1-Phase Bridge 35 600 2 5 350 17.5 600 150
Part Number EPB3506 Number of Functions 1-Phase Bridge IF(AV)(A)  35 VRWM (V)  600 VF
(V) [max]@IF(A)  2 		IR (uA)  [max] @
VR  5 		IFSM (A)  350 IF(A)  17.5 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
EPB3506 PB PB 7.5503 EPB3506

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report N/A Halogen Free 0.00 0.0
