Bridge Rectifiers | Status : Preferred

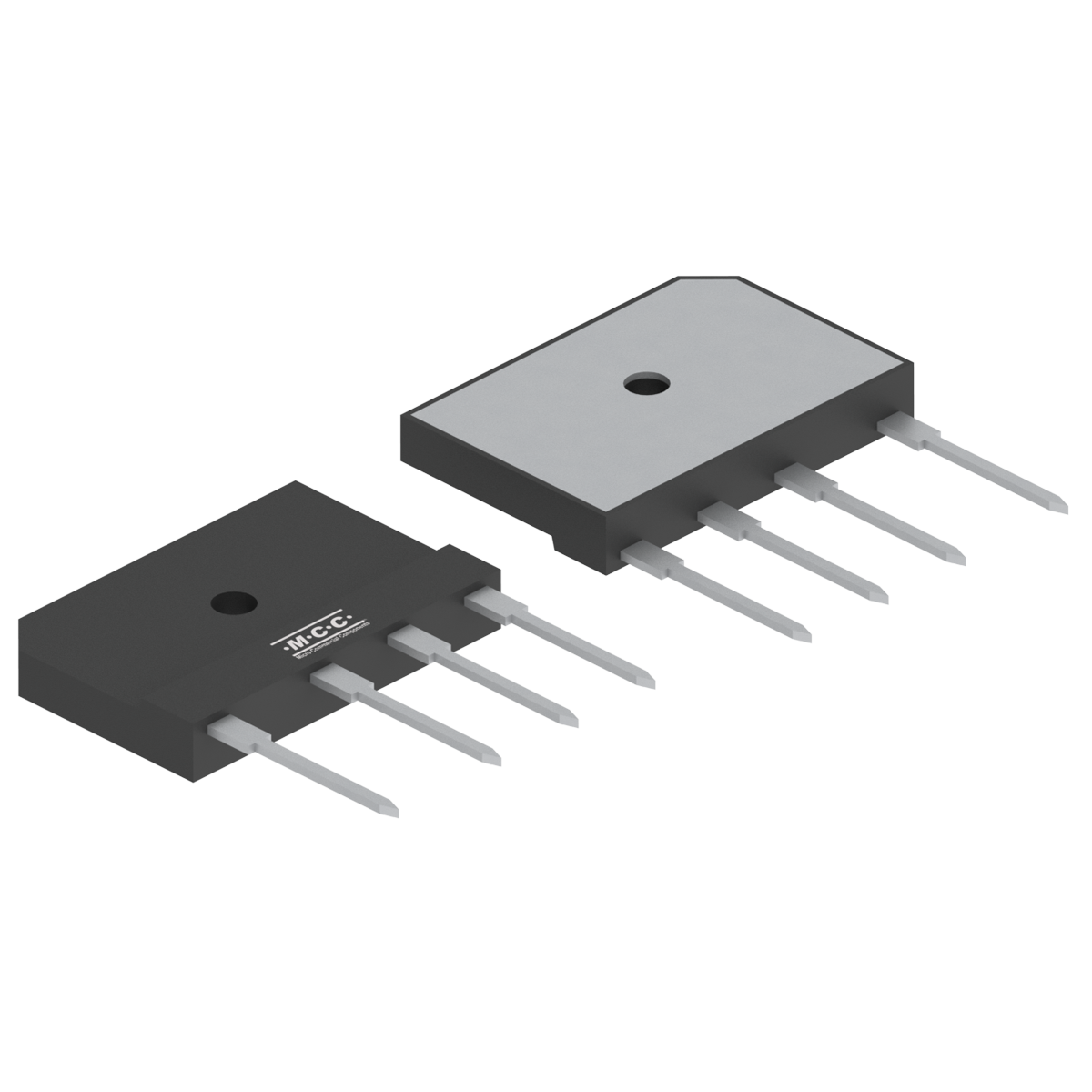

EPB2506

  • Package Type:PB
  • Packing Info:Tube:15pcs/Tube,750pcs/Box,1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:EPB2506-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
EPB2506 1-Phase Bridge 25 600 2 5 220 12.5 600 150
Part Number EPB2506 Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  600 VF
(V) [max]@IF(A)  2 		IR (uA)  [max] @
VR  5 		IFSM (A)  220 IF(A)  12.5 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
EPB2506 PB PB 7.5503 EPB2506

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report N/A Halogen Free 0.00 0.0
