Bridge Rectifiers | Status :
Active

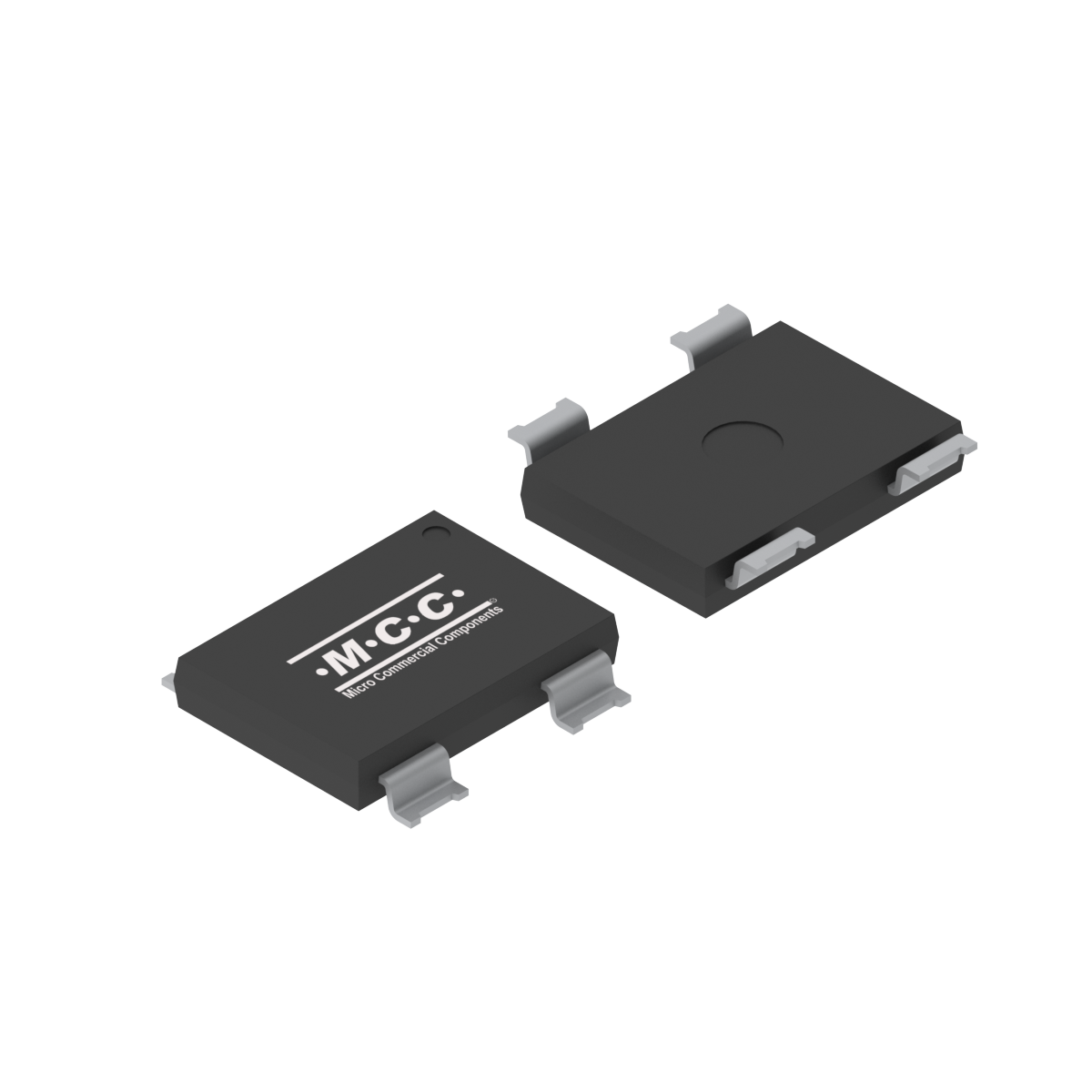

TBSA30M
- Package Type:TBSG
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:Bridge Rectifiers
- MPN:TBSA30M-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| TBSA30M | 1-Phase Bridge | 3 | 1000 | 1 | 5 | 110 | 1.5 | 1000 | 150 |
| Part Number TBSA30M | Number of Functions 1-Phase Bridge | IF(AV)(A) 3 | VRWM (V) 1000 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 5 |
IFSM (A) 110 | IF(A) 1.5 | VR (V) 1000 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| TBSA30M | TBSG |
TBSG
|
0.0000 | TBSA30M | Tape&Reel:2.5Kpcs/Reel; |
Environmental Information
Download
| Halogen Free | MTBF | FIT |
|---|---|---|
|
0.00 | 0.0 |
