Bridge Rectifiers | Status : Active

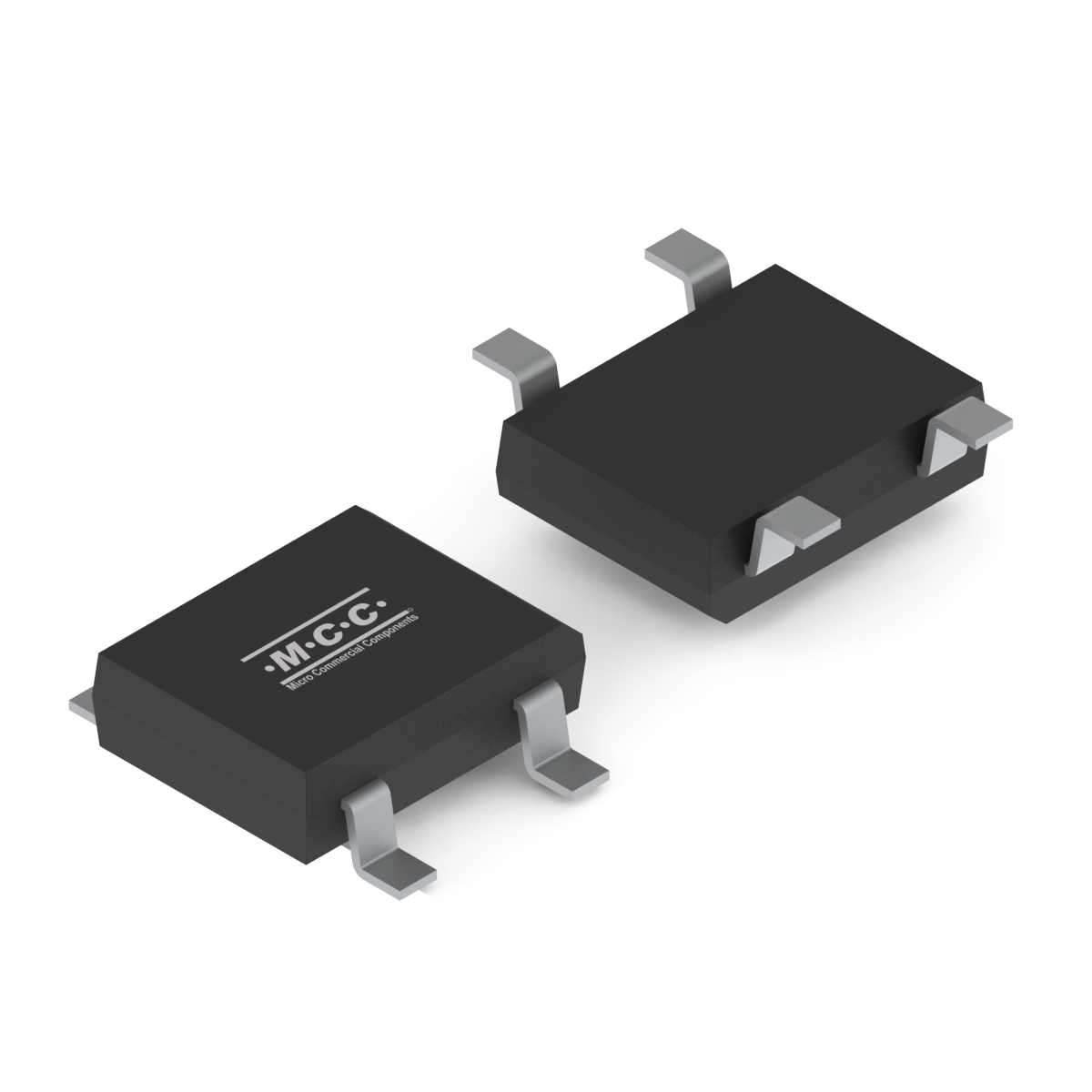

SDB155L

  • Package Type:SDBL-1
  • Packing Info:Tape: 1.5K/Reel , 21K/Ctn; Tube : 50pcs/Tube, 5K/Box ,20K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:SDB155L-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
SDB155L 1-Phase Bridge 1.5 600 1.1 10 50 0.7 600 150
Part Number SDB155L Number of Functions 1-Phase Bridge IF(AV)(A)  1.5 VRWM (V)  600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  50 IF(A)  0.7 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SDB155L SDBL-1 SDBL-1 0.3150 SDB155 Tape: 1.5K/Reel , 21K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
022125-1 Changes in packing process PDF 02/21/2025
