Bridge Rectifiers | Status : Active

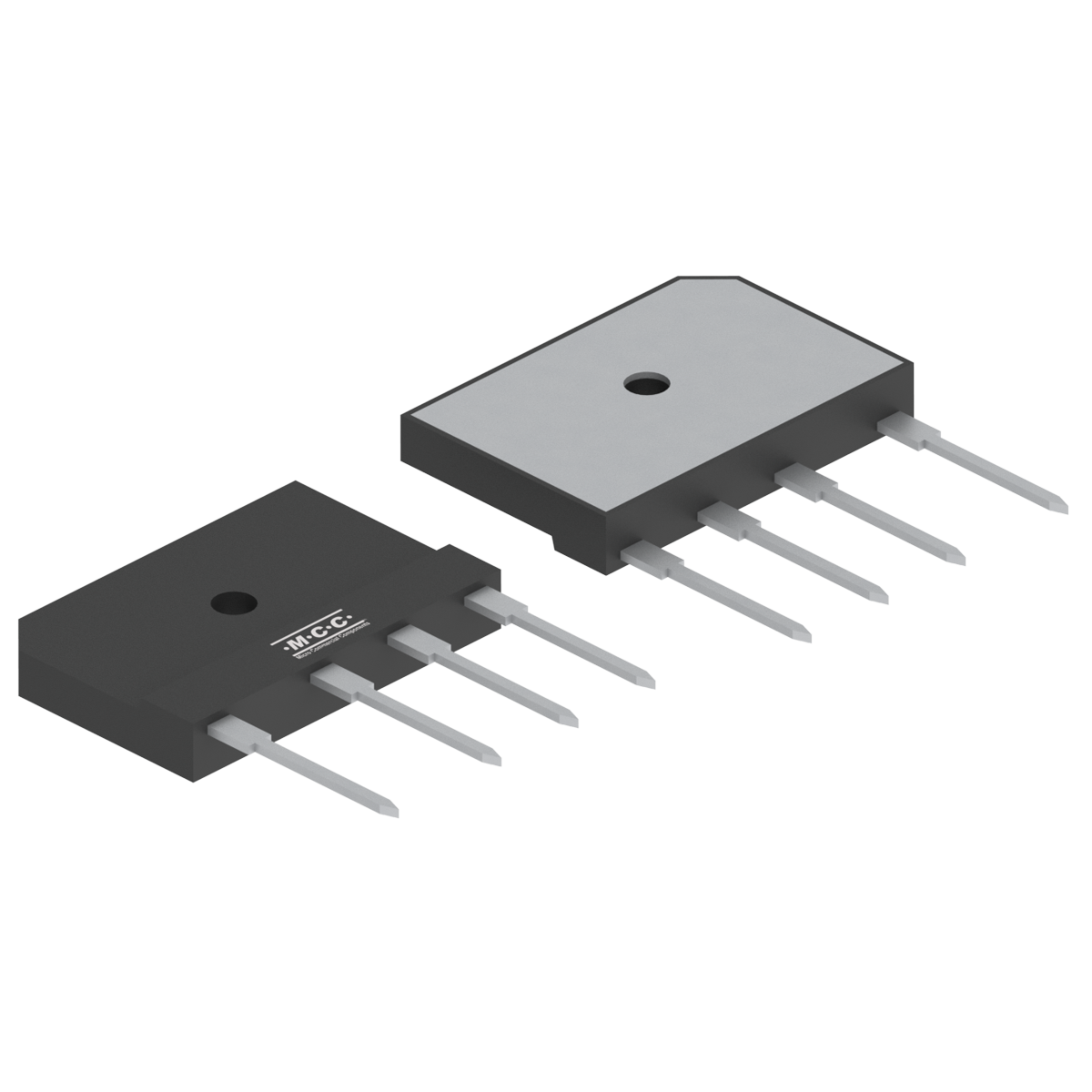

PB2510

  • Package Type:PB
  • Packing Info:Bulk:15pcs/Tube,750pcs/Box,1500pcs/Carton; Bulk:15pcs/Tube,750pcs/Box,1500pcs/Carton;
  • Category:Bridge Rectifiers
  • MPN:PB2510-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
PB2510 1-Phase Bridge 25 1000 1 5 350 12.5 1000 150
Part Number PB2510 Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  1000 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  350 IF(A)  12.5 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
PB2510 PB PB 7.5503 PB2510

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 12490.58 9.1
