Bridge Rectifiers | Status : Active

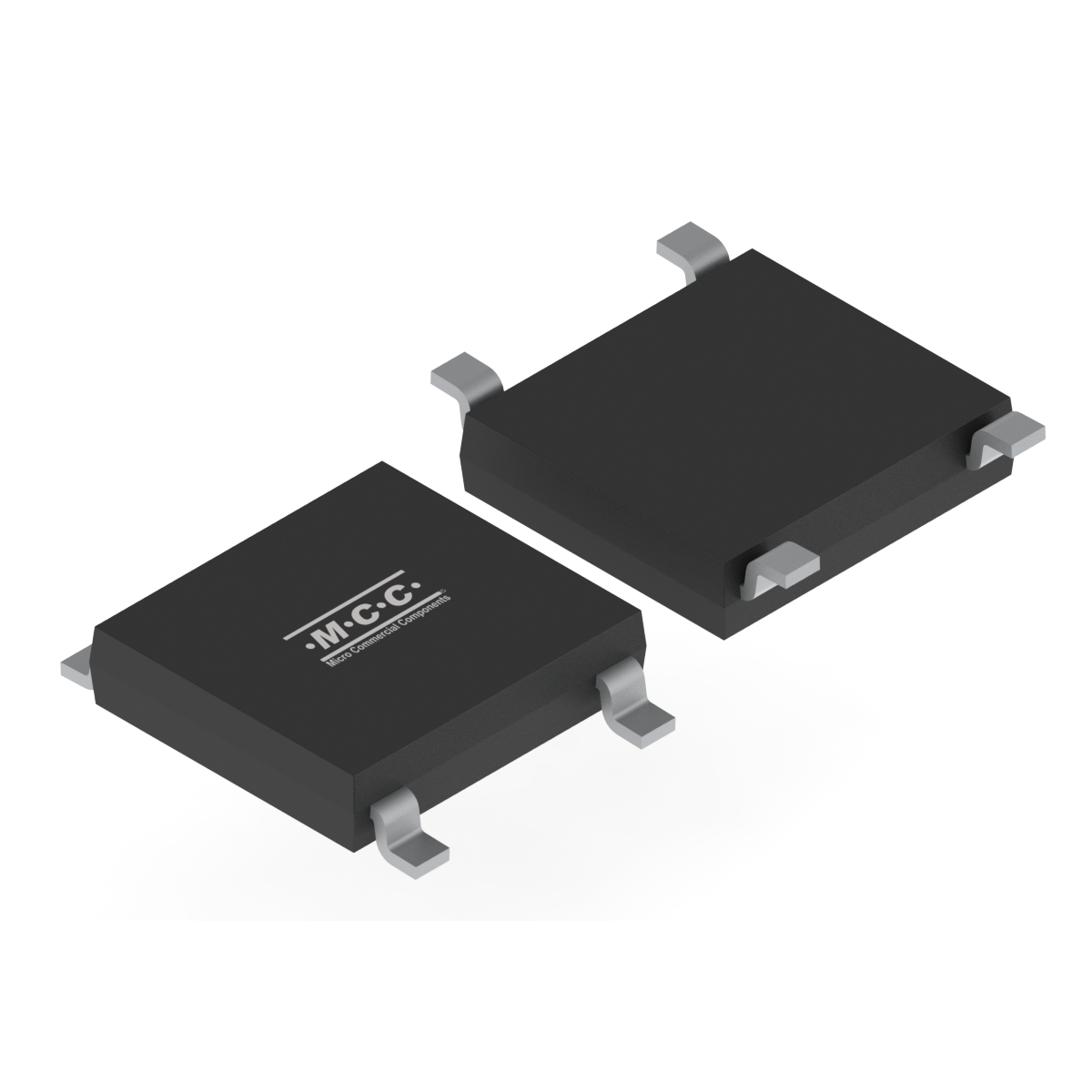

LMB207S

  • Package Type:LMBS-1
  • Packing Info:Tape&Reel
  • Category:Bridge Rectifiers
  • MPN:LMB207S-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
LMB207S 1-Phase Bridge 2 1000 0.95 5 60 1 1000 150
Part Number LMB207S Number of Functions 1-Phase Bridge IF(AV)(A)  2 VRWM (V)  1000 VF
(V) [max]@IF(A)  0.95 		IR (uA)  [max] @
VR  5 		IFSM (A)  60 IF(A)  1 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
LMB207S LMBS-1 LMBS-1 0.0880 LB207S Tape&Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
121525-1 Additional assembly & test centre PDF 12/15/2025
