Bridge Rectifiers | Status : Active

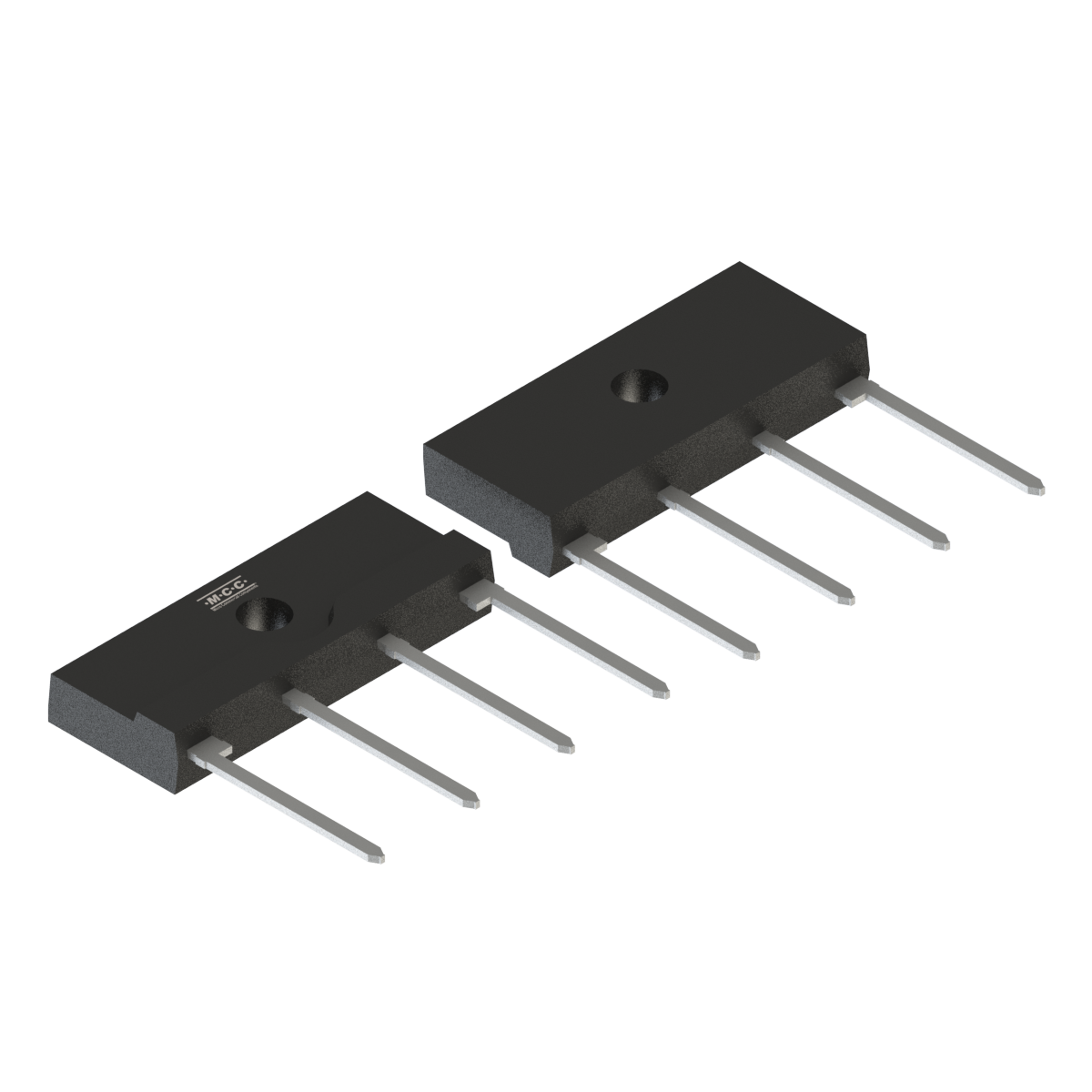

KBJA608

  • Package Type:JB
  • Packing Info:Bulk: 1.8K/Ctn
  • Category:Bridge Rectifiers
  • MPN:KBJA608-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
KBJA608 1-Phase Bridge 6 800 1 5 150 3 800 150
Part Number KBJA608 Number of Functions 1-Phase Bridge IF(AV)(A)  6 VRWM (V)  800 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  150 IF(A)  3 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
KBJA608 JB JB 2.5467 KBJA608

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 24981.15 4.6
