Bridge Rectifiers | Status : Active

GBUA4M

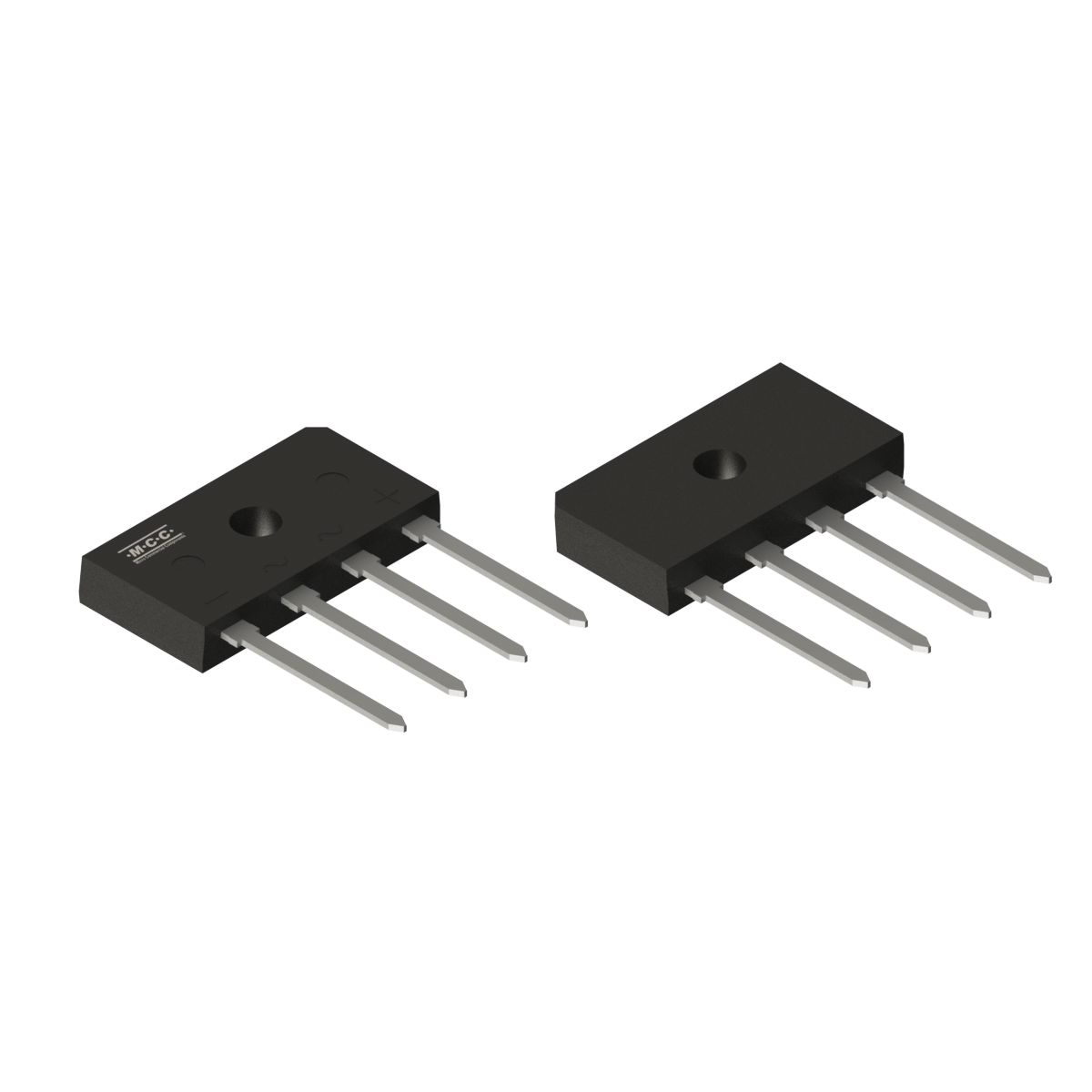

  • Package Type:JC
  • Packing Info:Bulk:25pcs/Tube,625pcs/Box,5000pcs/Carton; Bulk:25pcs/Tube,625pcs/Box,5000pcs/Carton;
  • Category:Bridge Rectifiers
  • MPN:GBUA4M-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBUA4M 1-Phase Bridge 4 1000 1 5 135 2 1000 150
Part Number GBUA4M Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  1000 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  135 IF(A)  2 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBUA4M JC Package Type Image JC 2.5467 GBUA4M

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 0.00 0.0
