Bridge Rectifiers | Status : NRND

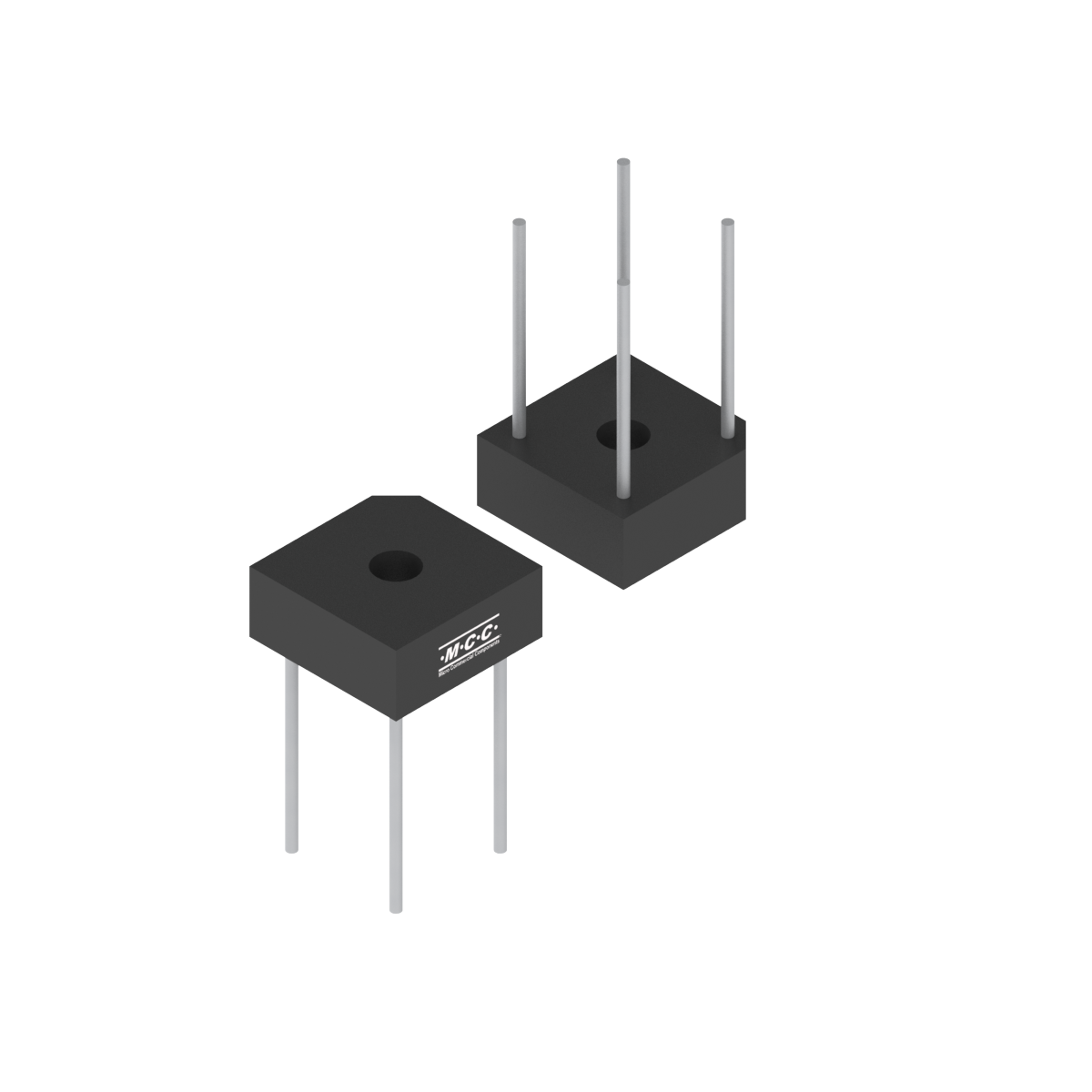

BR102

  • Package Type:PB-6
  • Packing Info:Bulk : 1.6Kpcs/Carton
  • Category:Bridge Rectifiers
  • MPN:BR102-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
BR102 1-Phase Bridge 10 200 1.1 10 150 5 200 150
Part Number BR102 Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  200 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  150 IF(A)  5 VR (V)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
BR102 PB-6 PB-6 4.0000 BR102

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
