Bridge Rectifiers | Status : Active

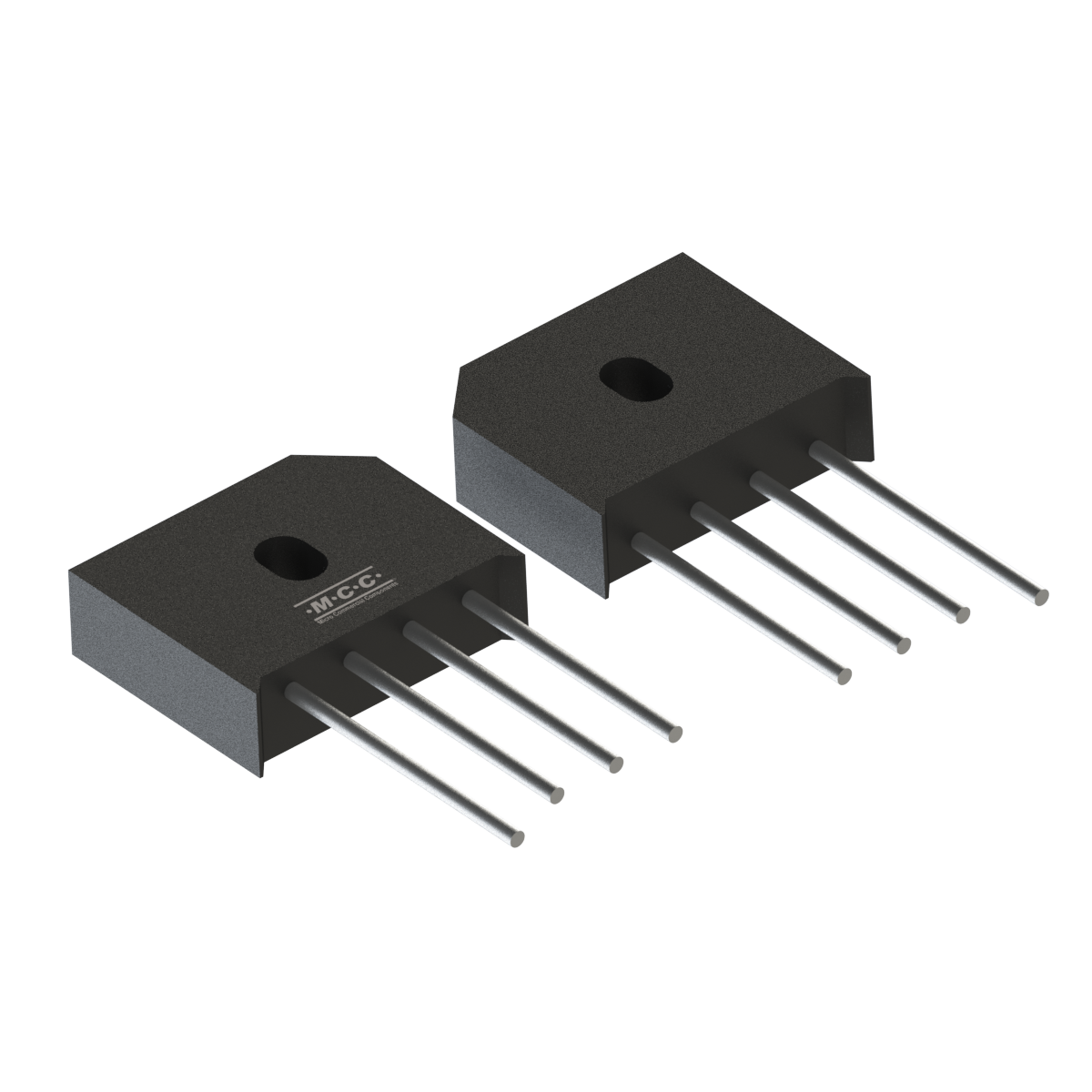

RS1005

  • Package Type:RS-6
  • Packing Info:Bulk: 400pcs/Box, 2.4K/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:RS1005-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
RS1005 1-Phase Bridge 10 600 1 10 250 5 600 150
Part Number RS1005 Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  600 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  10 		IFSM (A)  250 IF(A)  5 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
RS1005 RS-6 RS-6 6.3630 RS1005

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
