Bridge Rectifiers | Status : Active

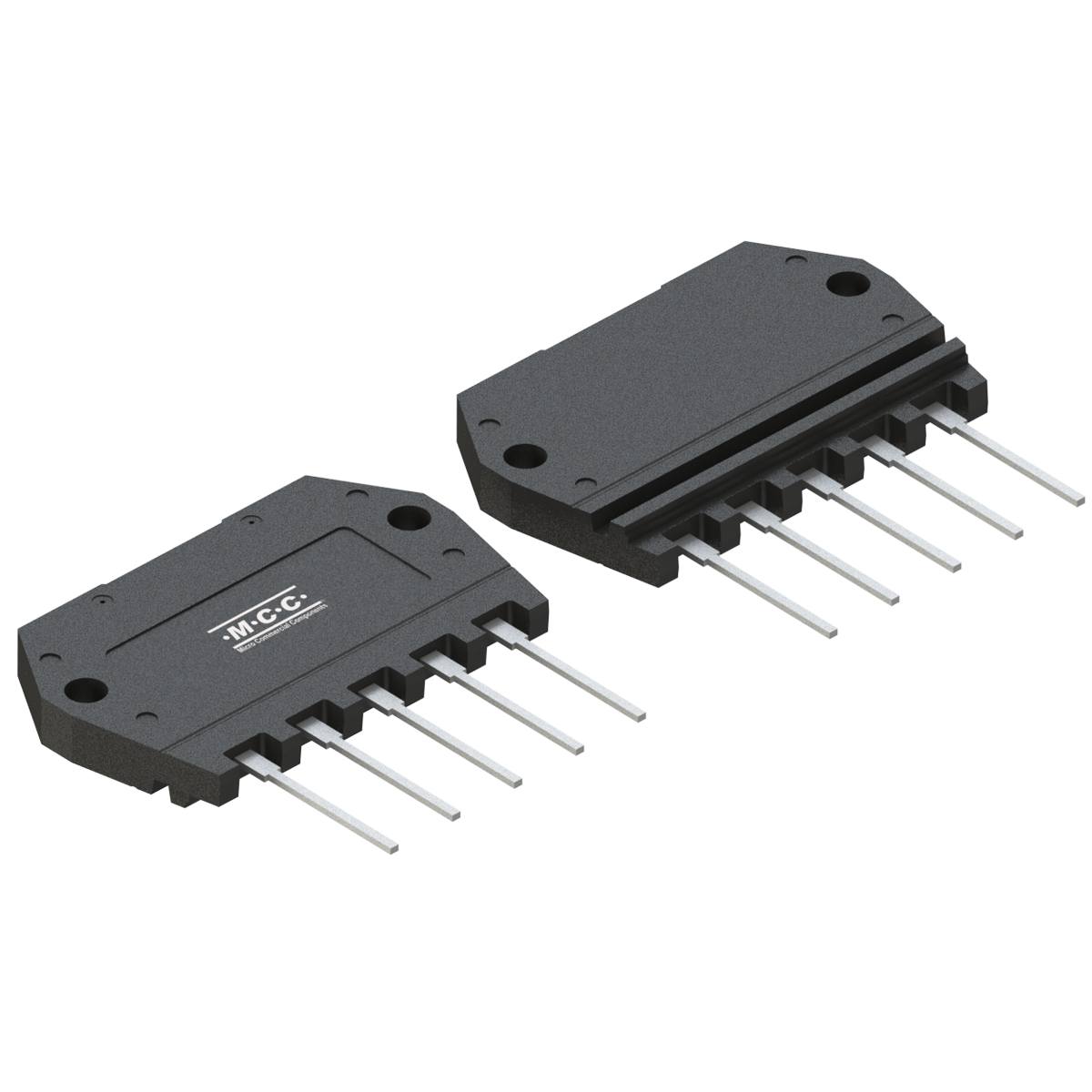

3GBJ3508

  • Package Type:TSB-5
  • Packing Info:Bulk:120pcs/Box,960pcs/Ctn
  • Category:Bridge Rectifiers
  • MPN:3GBJ3508-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
3GBJ3508 3-Phase Bridge 35 800 1.1 10 400 17.5 800 150
Part Number 3GBJ3508 Number of Functions 3-Phase Bridge IF(AV)(A)  35 VRWM (V)  800 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  400 IF(A)  17.5 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
3GBJ3508 TSB-5 TSB-5 15.5000 3GBJ3508

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 24981.15 4.6
