Schottky Barrier Rectifiers | Status : Active
Automotive

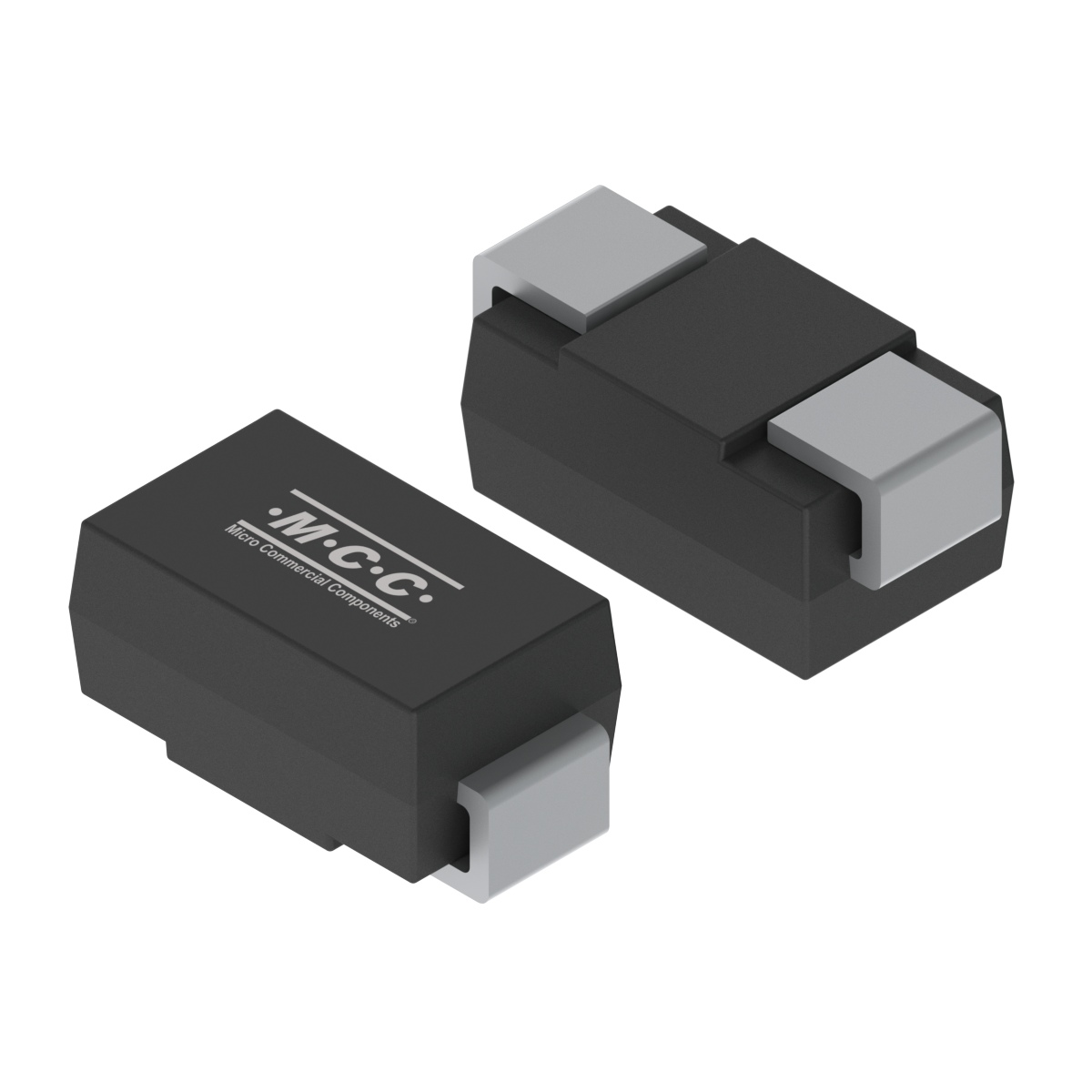

SS16Q-L

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SS16Q-L Single 1 60 0.7 50 40 60 1 150
Part Number SS16Q-L Number of Functions Single IF(AV)(A)  1 VRWM (V)  60 VF
(V) [max]@IF(A)  0.7 		IR (uA)  [max] @
VR  50 		IFSM (A)  40 VR (V)  60 IF(A)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SS16Q-L SMA SMA 0.0600 SS16 Tape: 5K/Reel, 80K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 9992.46 11.4
