TVS | Status : Active

SMGJ80CA

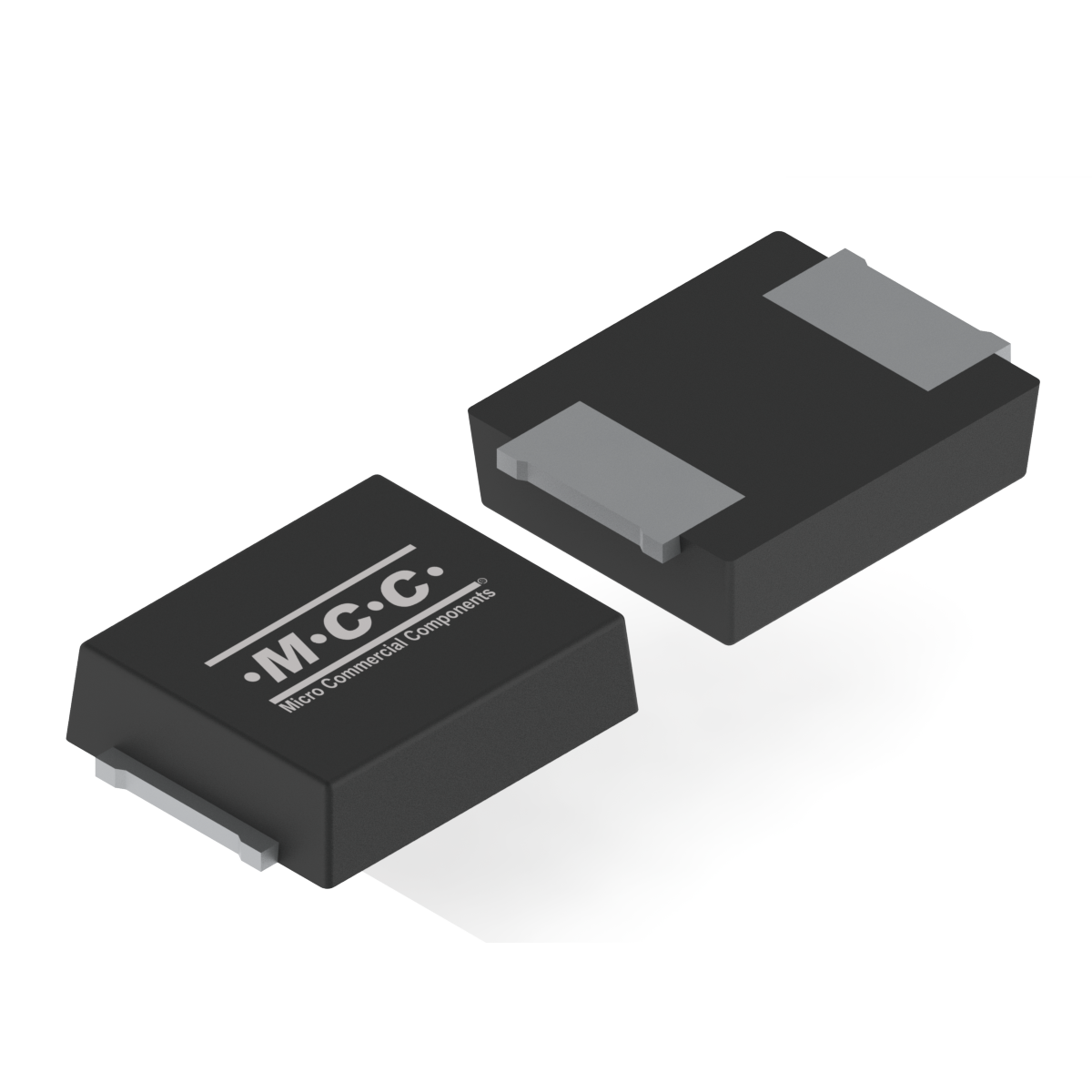

  • Package Type:SMG
  • Packing Info:Tape&Reel: 1500pcs/Reel;
  • Category:TVS
  • MPN:SMGJ80CA-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMGJ80CA Bidirectional 80 5 130 2500 90 110 125
Part Number SMGJ80CA Configuration Bidirectional Peak Pulse
Power
Dissipation
PPPM (W)   		Reverse
Standoff
Voltage
VRWM(V)  80 		Reverse
Leakage
IR(uA)  5 		Max.
Clamping
Voltage
VC (V)  130 		Peak Pulse
Current
IPP(A)  2500 		Breakdown
Voltage
Min VBR(V)  90 		Breakdown
Voltage
Max VBR(V)  110 		Junction
Temperature
Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMGJ80CA SMG SMG 0.6200 80CA Tape&Reel: 1500pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 3738.43 30.5
