TVS | Status : Active

SMEJ58CA

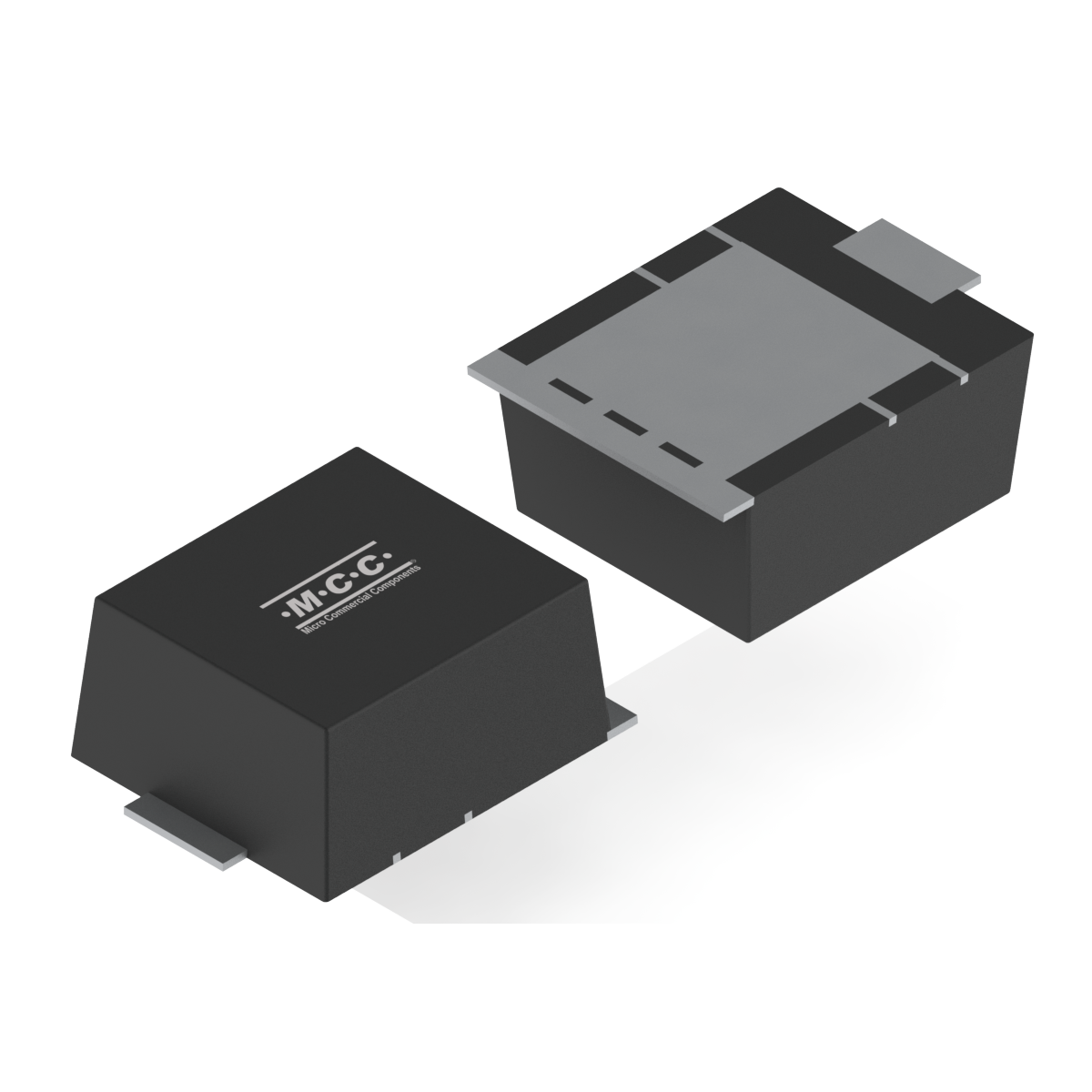

  • Package Type:SME
  • Packing Info:Tape&Reel: 400pcs/Reel;
  • Category:TVS
  • MPN:SMEJ58CA-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMEJ58CA Bidirectional 58 5 110 10000 64 70 125
Part Number SMEJ58CA Configuration Bidirectional Peak Pulse
Power
Dissipation
PPPM (W)   		Reverse
Standoff
Voltage
VRWM(V)  58 		Reverse
Leakage
IR(uA)  5 		Max.
Clamping
Voltage
VC (V)  110 		Peak Pulse
Current
IPP(A)  10000 		Breakdown
Voltage
Min VBR(V)  64 		Breakdown
Voltage
Max VBR(V)  70 		Junction
Temperature
Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMEJ58CA SME SME 5.0000 58CA Tape&Reel: 400pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 3738.43 30.5
