Schottky Barrier Rectifiers | Status : Active
Automotive

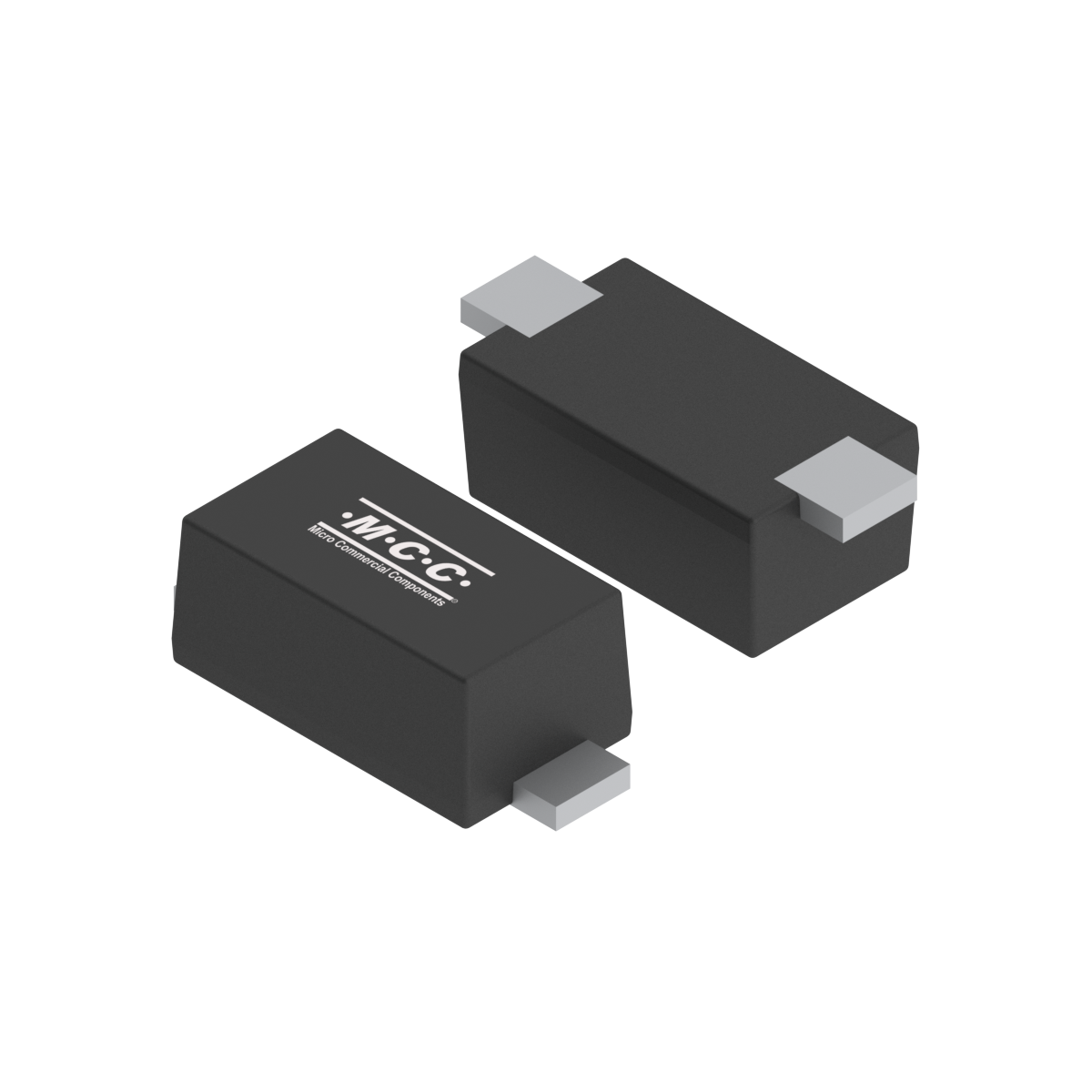

SMD220PLQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SMD220PLQ Single 2 200 0.9 5 50 200 2 175
Part Number SMD220PLQ Number of Functions Single IF(AV)(A)  2 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  5 		IFSM (A)  50 VR (V)  200 IF(A)  2 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMD220PLQ SOD-123FL SOD-123FL 0.0180 M20 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 29180.69 3.9
