TVS | Status : Active

SM4F13A

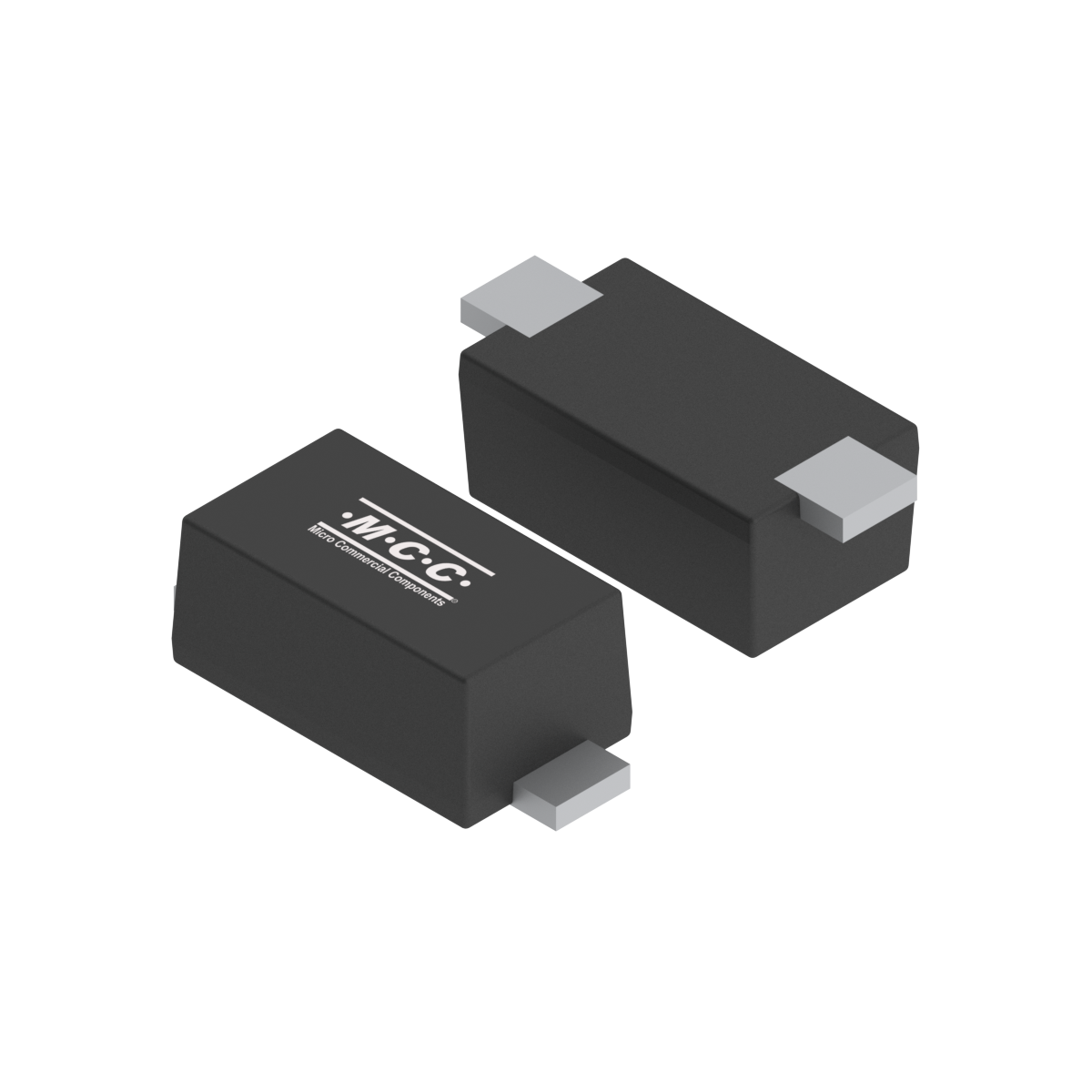

  • Package Type:SOD-123FL
  • Packing Info:Tape&Reel: 2.5Kpcs/Reel;
  • Category:TVS
  • MPN:SM4F13A-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SM4F13A Unidirectional 400 13 1 21.5 18.6 14.4 15.9 150
Part Number SM4F13A Configuration Unidirectional Peak Pulse
Power
Dissipation
PPPM (W)  400 		Reverse
Standoff
Voltage
VRWM(V)  13 		Reverse
Leakage
IR(uA)  1 		Max.
Clamping
Voltage
VC (V)  21.5 		Peak Pulse
Current
IPP(A)  18.6 		Breakdown
Voltage
Min VBR(V)  14.4 		Breakdown
Voltage
Max VBR(V)  15.9 		Junction
Temperature
Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SM4F13A SOD-123FL SOD-123FL 0.0180 F13 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 22483.04 5.1
