IGBT Modules | Status : Active

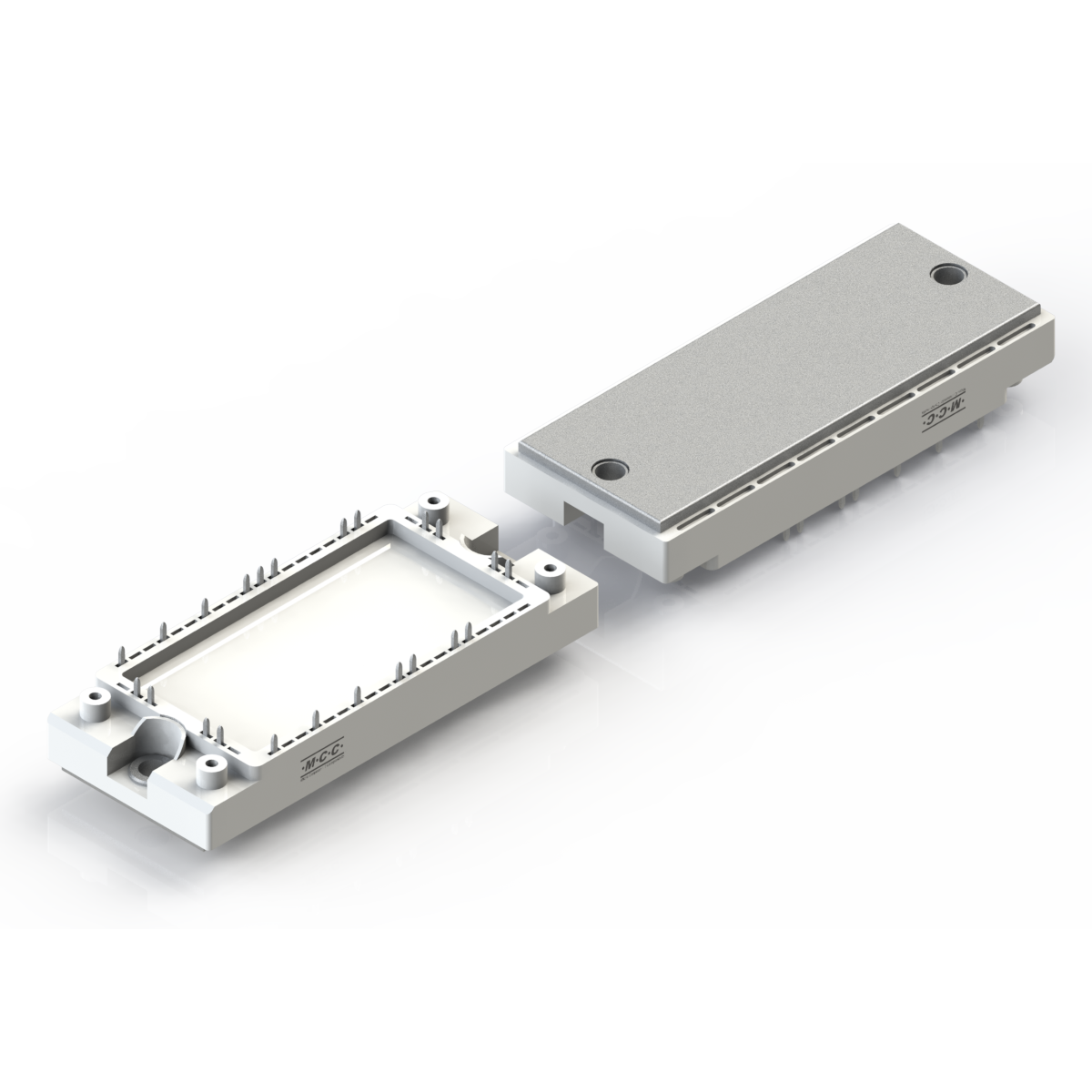

MIP50R12E1ATN

  • Package Type:E1A
  • Packing Info:Bulk: 8pcs/Box;
  • Category:IGBT Modules
  • MPN:MIP50R12E1ATN-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Collector‐Emitter
Voltage
VCES (V)		 Continuous
Collector Current
@ Tc=100°C
IC (A)		 Collector‐Emitter
Saturation Voltage
VCE(sat) (V)		 Turn-On
Energy@TVJ=125°C
Eon (mJ)		 Turn‐Off
Energyy@TVJ=125°C
Eoff (mJ)		 Junction
Temperature
Tj [max] (°C)		 Total Power
Dissipation
Ptot(W)
MIP50R12E1ATN PIM three phase input rectifier 1200 50 1.9 5.92 3.39 175 288
Part Number MIP50R12E1ATN Number of Functions PIM three phase input rectifier Collector‐Emitter
Voltage
VCES (V)  1200 		Continuous
Collector Current
@ Tc=100°C
IC (A)  50 		Collector‐Emitter
Saturation Voltage
VCE(sat) (V)  1.9 		Turn-On
Energy@TVJ=125°C
Eon (mJ)  5.92 		Turn‐Off
Energyy@TVJ=125°C
Eoff (mJ)  3.39 		Junction
Temperature
Tj [max] (°C)  175 		Total Power
Dissipation
Ptot(W)  288

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MIP50R12E1ATN E1A E1A 171.5000 MIP50R12E1ATN

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
21885.51 5.2
