IGBT Modules | Status :
Active
Datasheet

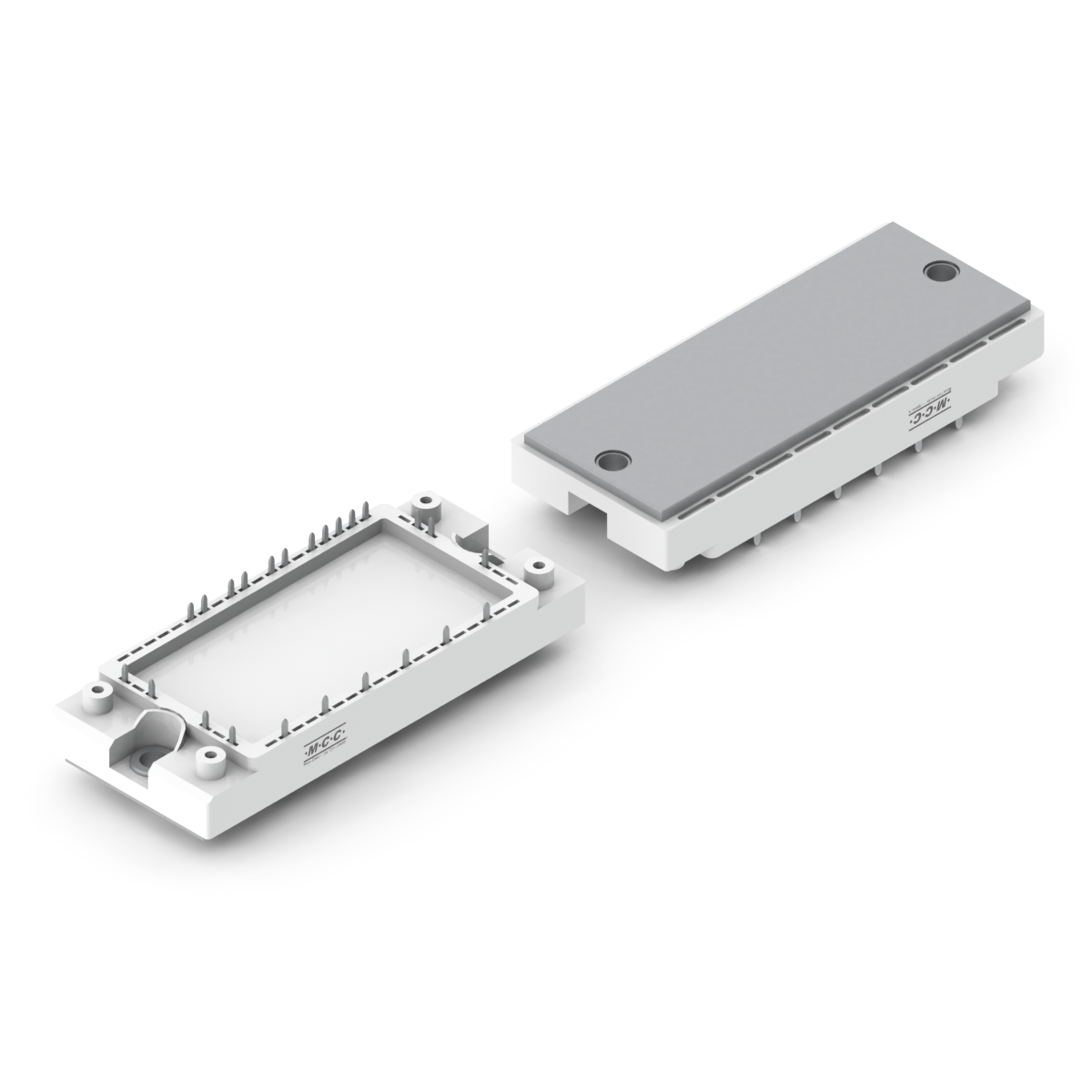

MIP25R12E1TN
- Package Type:E1
- Packing Info: Bulk: 10pcs/Box;
- Category:IGBT Modules
Product Detail
| Part Number | Number of Functions | Voltage Class max [V] | IC @ 100° max [A] |
VCE(sat) [V] | Eon [mJ] | Eoff Hard Switching [mJ] |
IF max [A] |
|---|---|---|---|---|---|---|---|
| MIP25R12E1TN | PIM three phase input rectifier | 1200 | 25 | 2.25 | 1.8 | 1.4 |
| Part Number MIP25R12E1TN | Number of Functions PIM three phase input rectifier | Voltage Class max [V] 1200 | IC @ 100° max [A] 25 | VCE(sat) [V] 2.25 | Eon [mJ] 1.8 | Eoff Hard Switching [mJ] 1.4 | IF max [A] |
Package
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MIP25R12E1TN |
E1
|
E1 | 0.0000 | MIP25R12E1TN |
Download
