Zener Diodes | Status : Active
Automotive

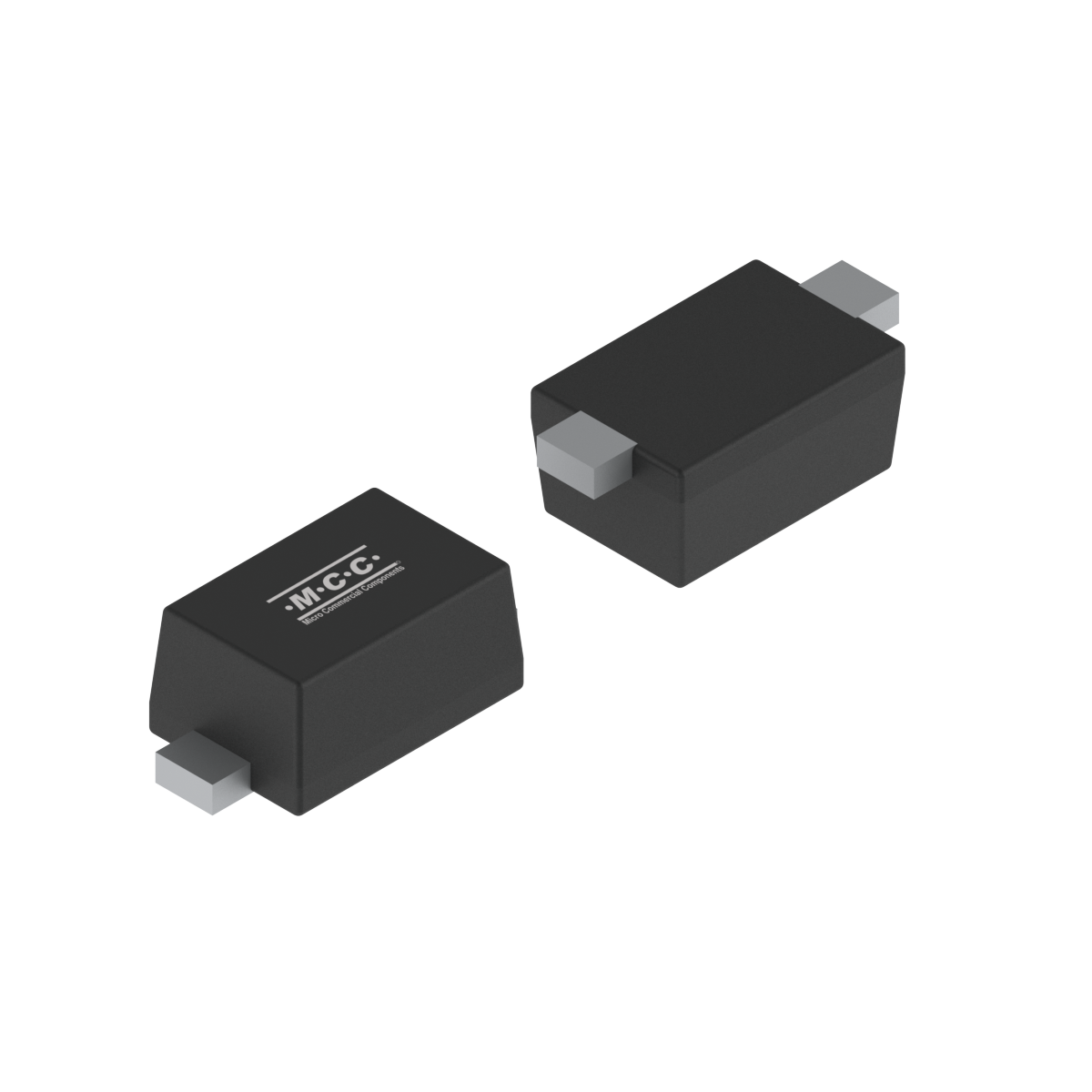

BZX584C5V1HE3

  • Package Type:SOD-523
  • Packing Info:Tape : 8K/Reel, 320K/Ctn;
  • Category:Zener Diodes
  • MPN:BZX584C5V1HE3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZX584C5V1HE3 Single 0.15 5.1 5 0.002 2 60 480 1 150
Part Number BZX584C5V1HE3 Number of Functions Single PD(W)  0.15 VZ[Nom](V)  5.1 IZT(mA)  5 IR (mA) [max]
@VR  0.002 		VR(V)  2 ZZT(Ω)
@IZT  60 		ZZK(Ω)
@IZT  480 		IZK(mA)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZX584C5V1HE3 SOD-523 SOD-523 0.0013 Z2 Tape : 8K/Reel, 320K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 17486.81 6.5
