Zener Diodes | Status :
Active

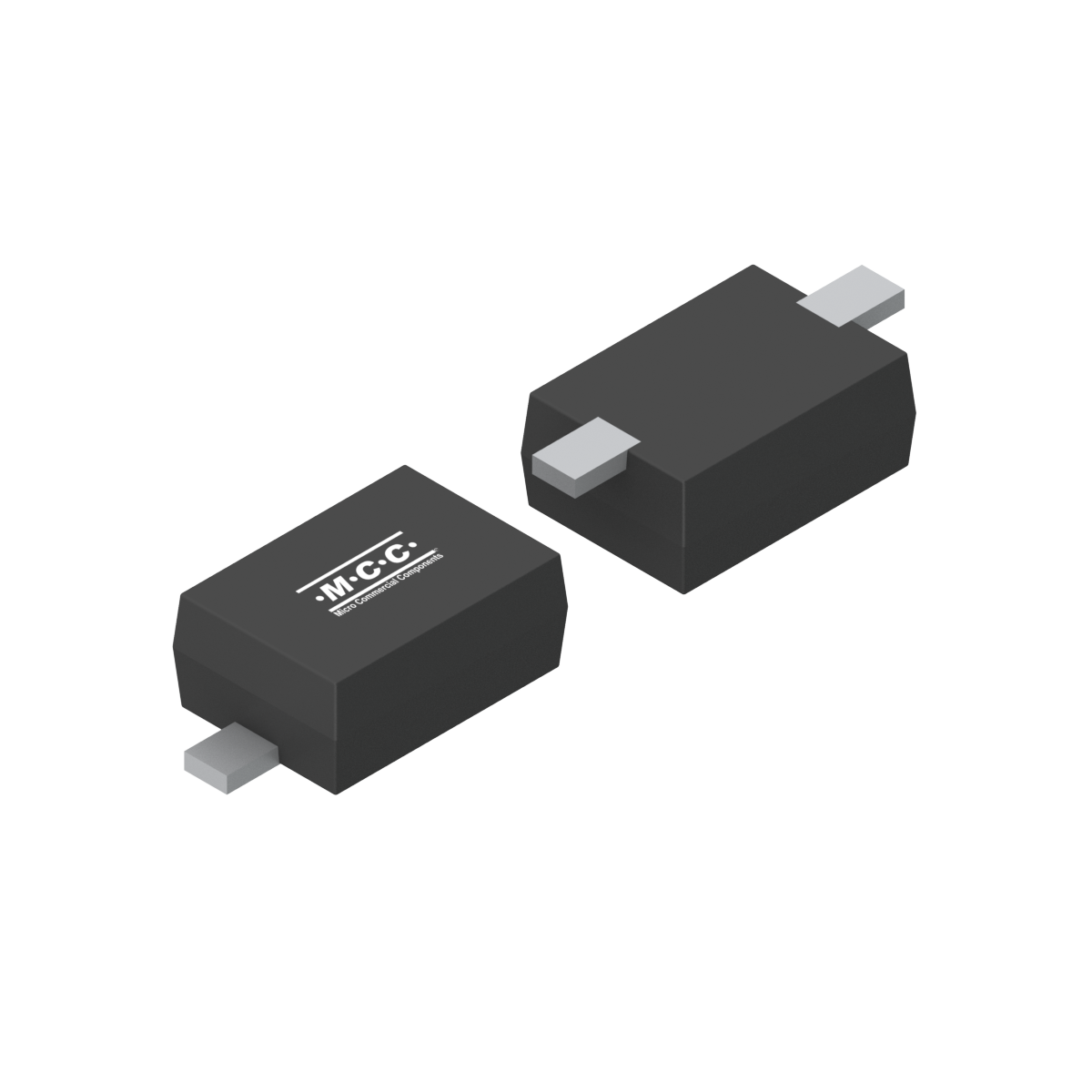

BZT52B9V1LS
- Package Type:SOD-323FL
- Packing Info:Tape&Reel: 3Kpcs/Reel;
- Category:Zener Diodes
- MPN:BZT52B9V1LS-TP
Product Detail
| Part Number | Number of Functions | PD(W) | VZ[Nom](V) | IZT(mA) | IR (mA) [max] @VR |
VR(V) | ZZT(Ω) @IZT |
ZZK(Ω) @IZT |
IZK(mA) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BZT52B9V1LS | Single | 0.2 | 9.1 | 5 | 0.0005 | 6.8 | 30 | 60 | 1 | 150 |
| Part Number BZT52B9V1LS | Number of Functions Single | PD(W) 0.2 | VZ[Nom](V) 9.1 | IZT(mA) 5 |
IR (mA) [max] @VR 0.0005 |
VR(V) 6.8 |
ZZT(Ω) @IZT 30 |
ZZK(Ω) @IZT 60 |
IZK(mA) 1 |
Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | Halogen Free | MTBF | FIT |
|---|---|---|---|
|
|
17486.81 | 6.5 |
