Zener Diodes | Status : Active

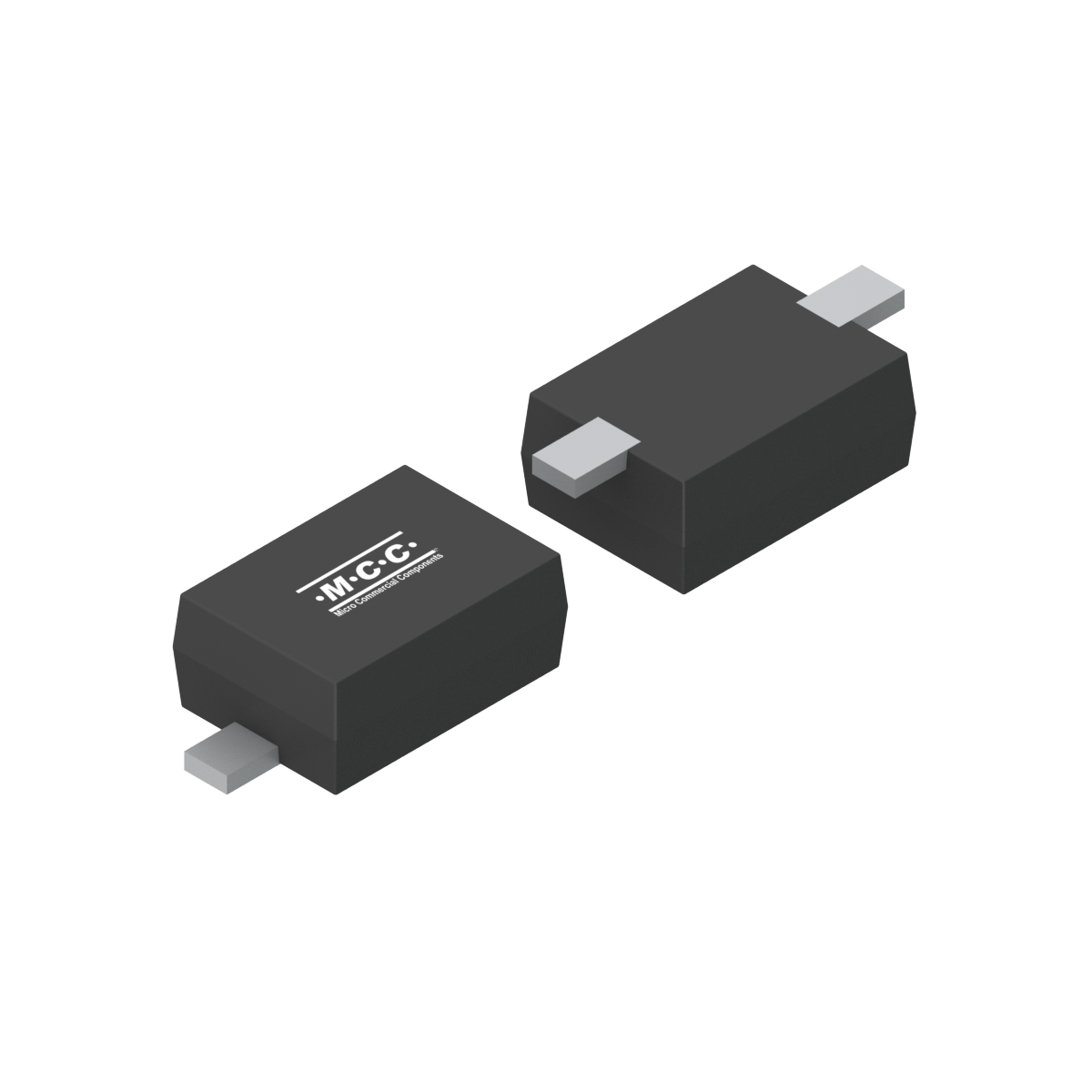

BZT52B10LS

  • Package Type:SOD-323FL
  • Packing Info:Tape&Reel: 3Kpcs/Reel;
  • Category:Zener Diodes
  • MPN:BZT52B10LS-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZT52B10LS Single 0.2 10 5 0.0001 7.5 30 70 1 150
Part Number BZT52B10LS Number of Functions Single PD(W)  0.2 VZ[Nom](V)  10 IZT(mA)  5 IR (mA) [max]
@VR  0.0001 		VR(V)  7.5 ZZT(Ω)
@IZT  30 		ZZK(Ω)
@IZT  70 		IZK(mA)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZT52B10LS SOD-323FL SOD-323FL 0.0034 10. Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 17486.81 6.5
