Medium Power Bipolar Transistors | Status :
Obsoleted
2SA1013-Y
Last Time Ship Date:07-23-2020
EOL Notice

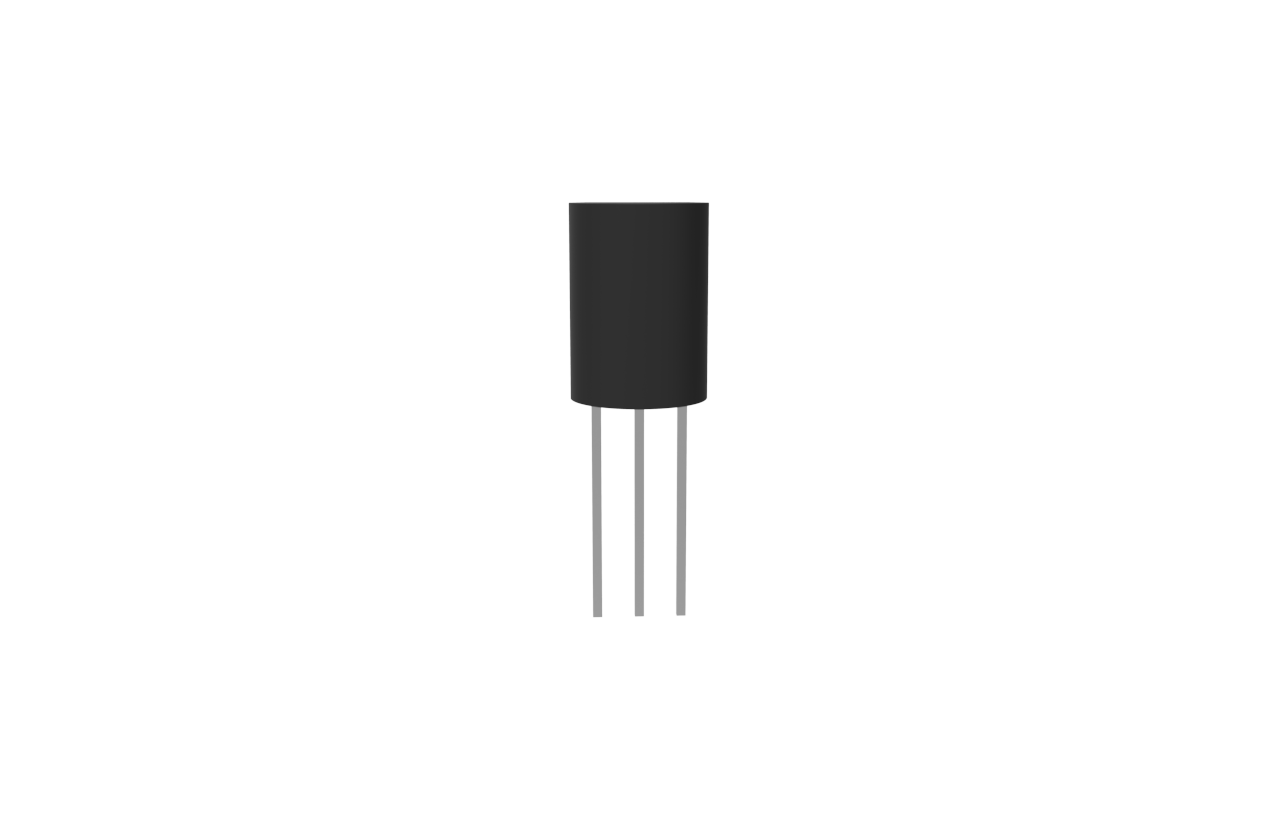

- Package Type:TO-92MOD
- Packing Info:Bulk:0.5k/Bag,,50K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2SA1013-Y | Single | PNP | 0.9 | -160 | -1 | 200 | 300 | -1.5 | 15 | 150 |
| Part Number 2SA1013-Y | Number of Functions Single | Polarity PNP | PD (W) 0.9 | VCEO(V) -160 | IC (A) -1 | HFE [min] 200 | HFE [max] 300 |
VCE(sat) [max] (V) -1.5 |
fT(MHz) 15 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| 2SA1013-Y | TO-92MOD |
TO-92MOD
|
0.3890 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
