Voltage Regulators | Status : Allocation

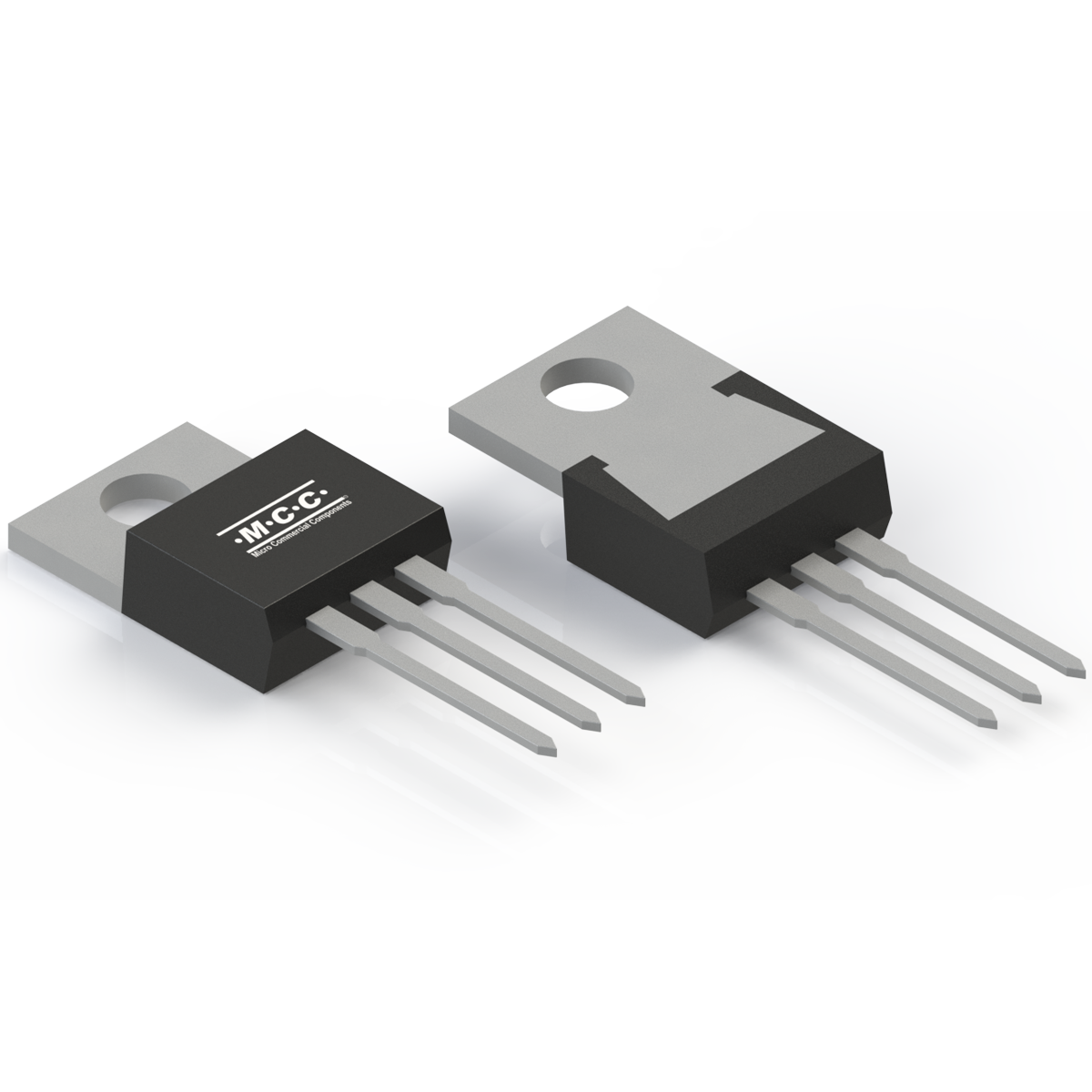

MC7808CT

  • Package Type:TO-220
  • Packing Info:Tube: 50pcs/Tube, 1K/Box,5K/Ctn
  • Category:Voltage Regulators
  • MPN:MC7808CT-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Maximum
Output
Current
IO (A)		 Output Voltage
Min VO(V)		 Output Voltage
Max VO(V)		 Input Voltage
Min VI(V)		 Input Voltage
Max VI(V)		 Operating
Temperature
Topr(°C)
MC7808CT 1 7.84 8.16 10.5 23 -20~75
Part Number MC7808CT Maximum
Output
Current
IO (A)  1 		Output Voltage
Min VO(V)  7.84 		Output Voltage
Max VO(V)  8.16 		Input Voltage
Min VI(V)  10.5 		Input Voltage
Max VI(V)  23 		Operating
Temperature
Topr(°C)  -20~75

Packing Information

Part Number Package Type Packing Specification Component Weight (g)
MC7808CT TO-220 TO-220 2.2400

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
