Medium Power Bipolar Transistors | Status :
Obsoleted
TIP31
Last Time Ship Date:06-30-2021
EOL Notice

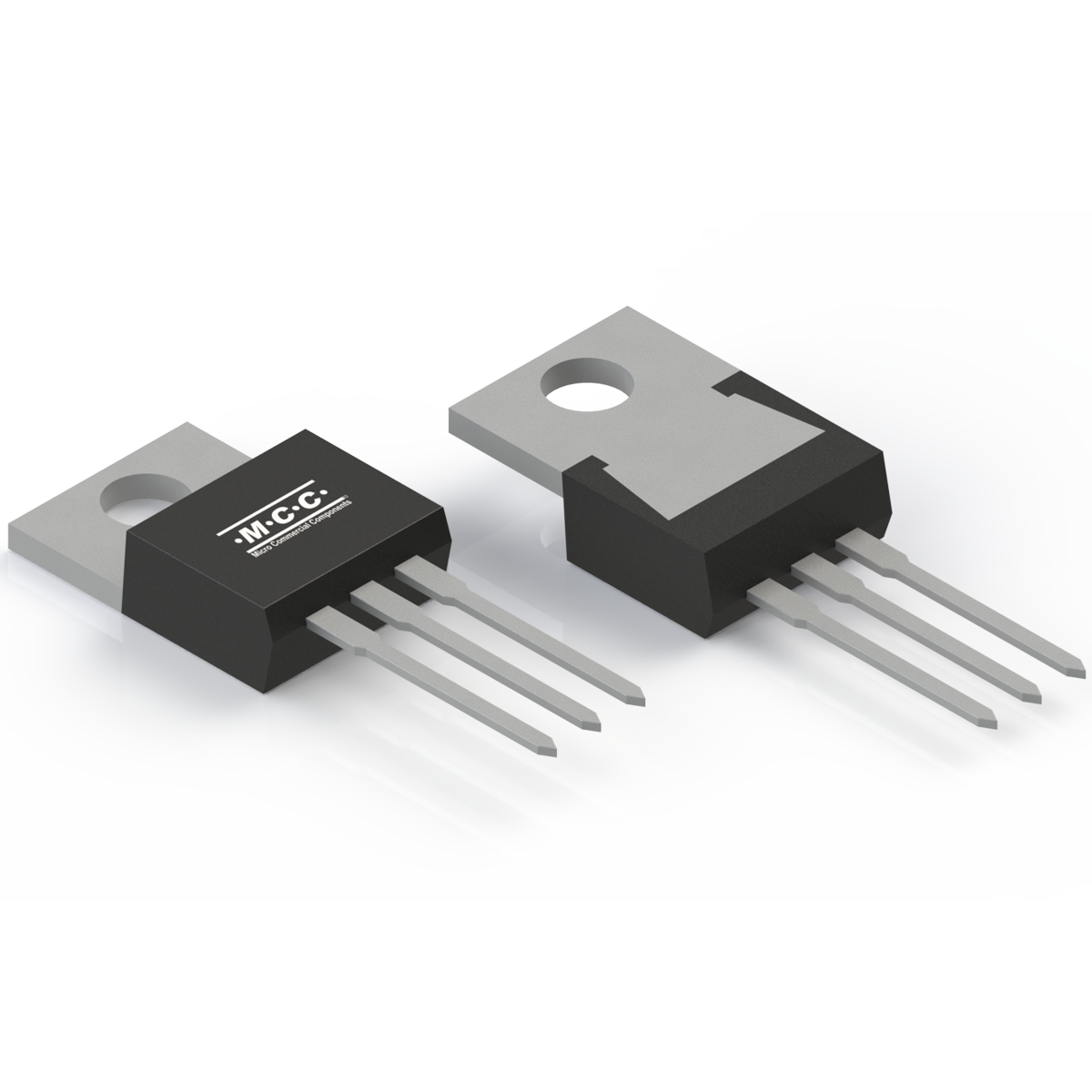

- Package Type:TO-220
- Packing Info:Tube:50pcs/Tube;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| TIP31 | Single | NPN | 2 | 40 | 3 | 25 | 1.2 | 3 | 150 |
| Part Number TIP31 | Number of Functions Single | Polarity NPN | PD (W) 2 | VCEO(V) 40 | IC (A) 3 | HFE [min] 25 | HFE [max] |
VCE(sat) [max] (V) 1.2 |
fT(MHz) 3 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MTBF | FIT |
|---|---|---|
|
17486.81 | 6.5 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
