Medium Power Bipolar Transistors | Status : Obsoleted

TIP112

Last Time Ship Date:06-30-2021 EOL Notice
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)		 fT(MHz) Tj [max] (°C)
TIP112 Single NPN 2 100 2 1000 2.5 150
Part Number TIP112 Number of Functions Single Polarity NPN PD (W)  2 VCEO(V)  100 IC (A)  2 HFE [min]  1000 HFE [max]   VCE(sat) [max]
(V)  2.5 		fT(MHz)   Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g)

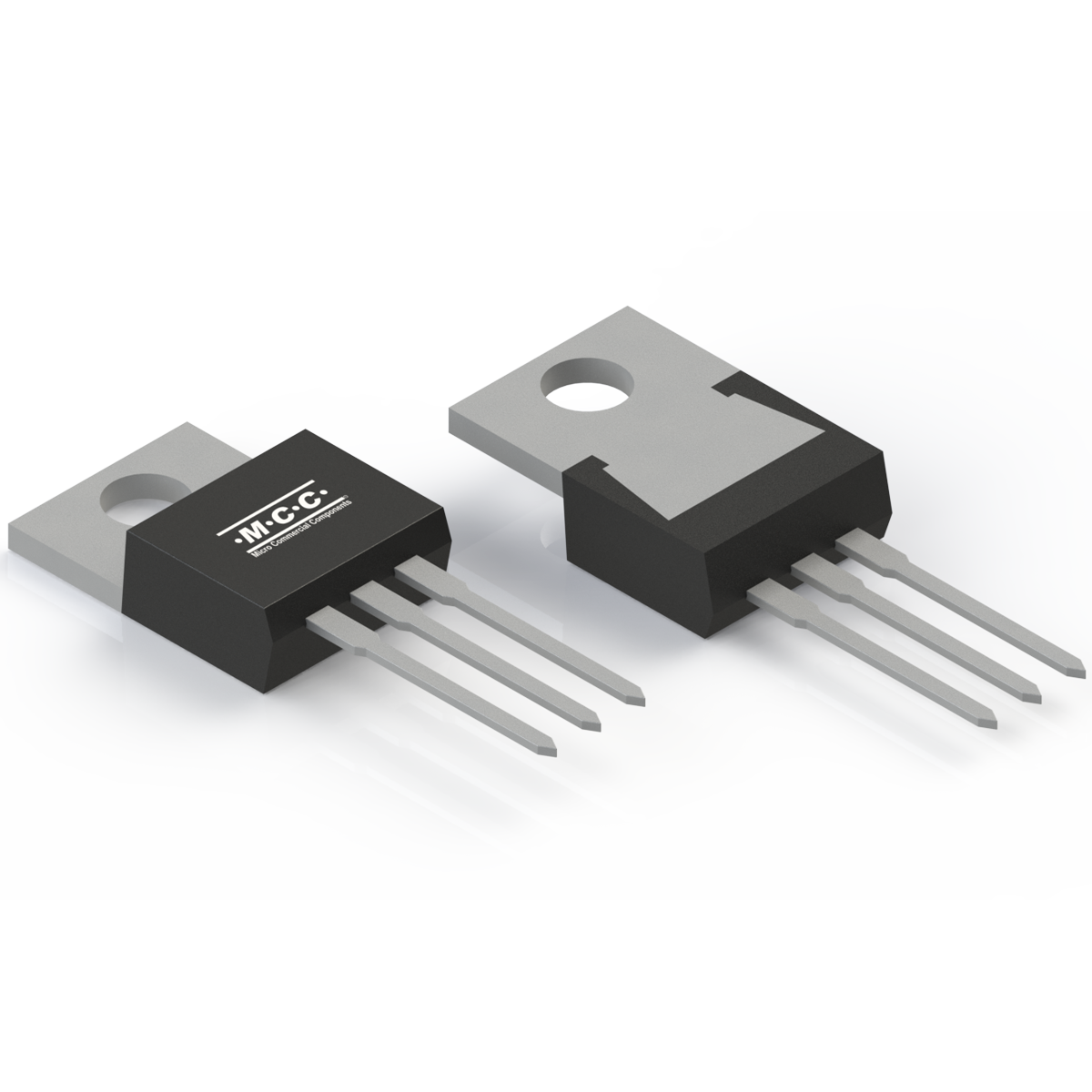

TIP112 TO-220 TO-220 2.2400

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
