Medium Power Bipolar Transistors | Status :
Obsoleted
S9015-C
Last Time Ship Date:07-23-2020
EOL Notice

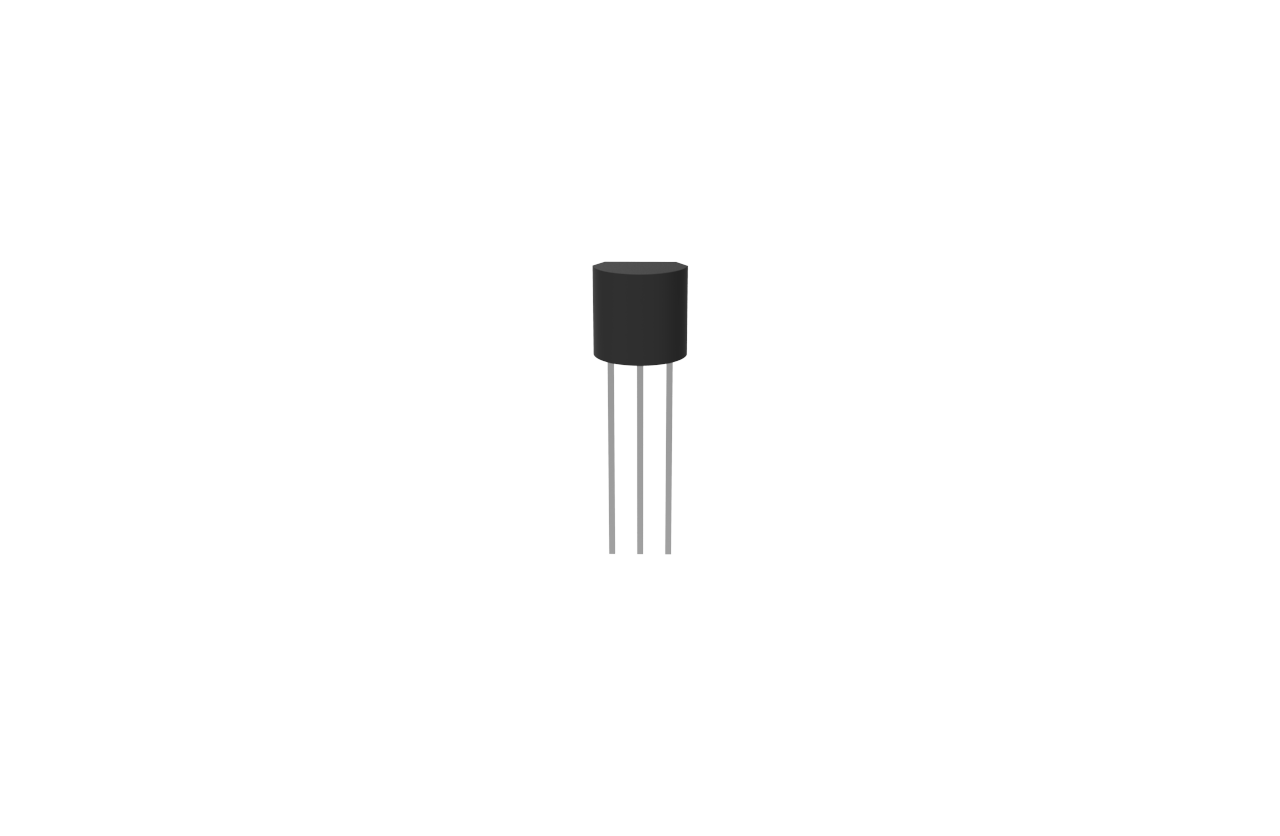

- Package Type:TO-92
- Packing Info:Bulk:1k/Bag,,100K/Ctn; T/B:2K/Ammo Box , 20K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| S9015-C | Single | PNP | 0.45 | -45 | -0.1 | 200 | 600 | -0.3 | 150 | 150 |
| Part Number S9015-C | Number of Functions Single | Polarity PNP | PD (W) 0.45 | VCEO(V) -45 | IC (A) -0.1 | HFE [min] 200 | HFE [max] 600 |
VCE(sat) [max] (V) -0.3 |
fT(MHz) 150 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
