Medium Power Bipolar Transistors | Status : Obsoleted

MJE2955

Last Time Ship Date:08-01-2019 EOL Notice
Check Stock Add To Cart

Product Detail

Part Number Number of Functions Polarity PD (W) VCEO(V) IC (A) HFE [min] HFE [max] VCE(sat) [max]
(V)
fT(MHz) Tj [max] (°C)
MJE2955 Single PNP 2 -60 10 20 100 -1.1 2 150
Part Number MJE2955 Number of Functions Single Polarity PNP PD (W)  2 VCEO(V)  -60 IC (A)  10 HFE [min]  20 HFE [max]  100 VCE(sat) [max]
(V)
 -1.1
fT(MHz)  2 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g)

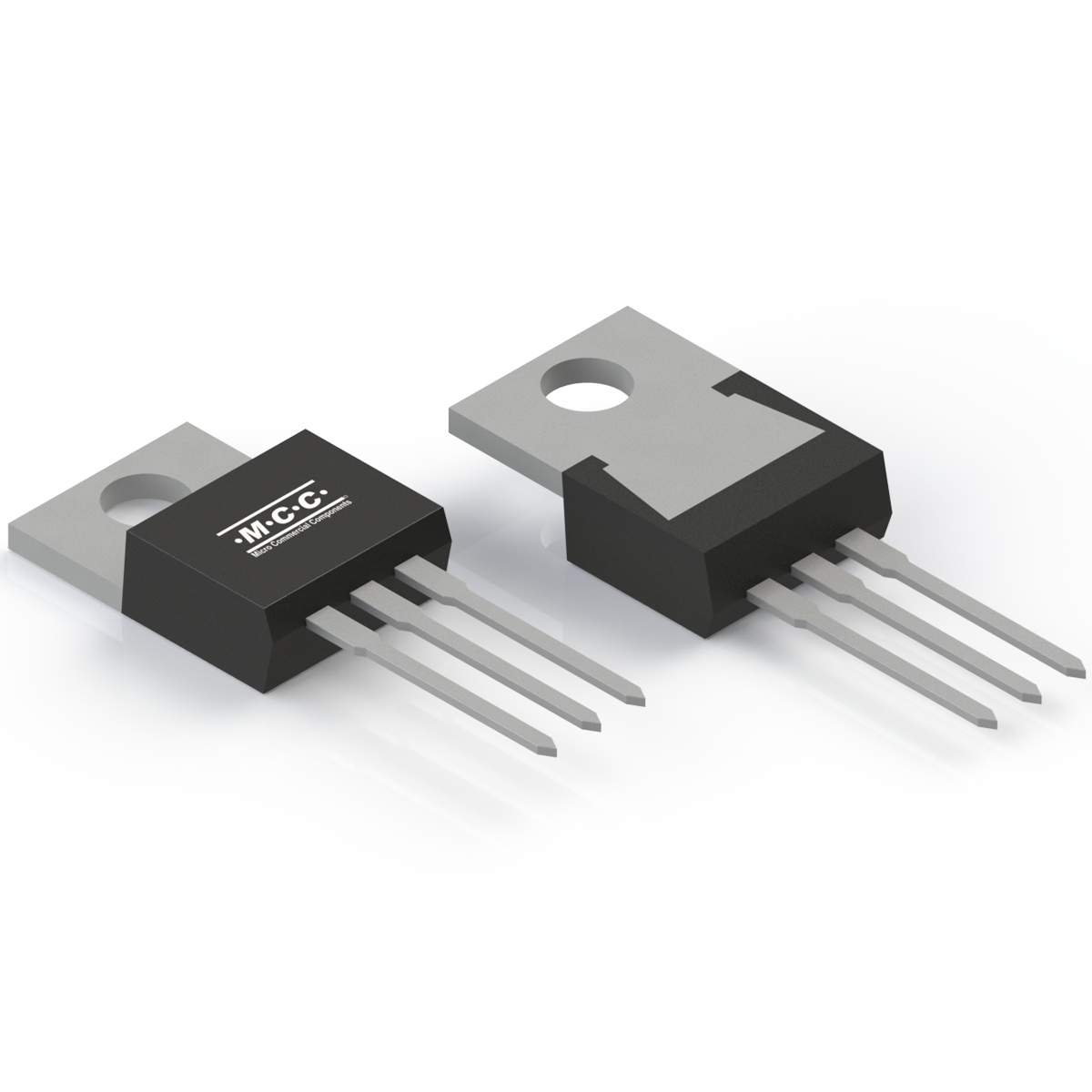

MJE2955 TO-220 TO-220 2.2400

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2
