Medium Power Bipolar Transistors | Status :
Obsoleted
BC548A
Last Time Ship Date:07-23-2020
EOL Notice

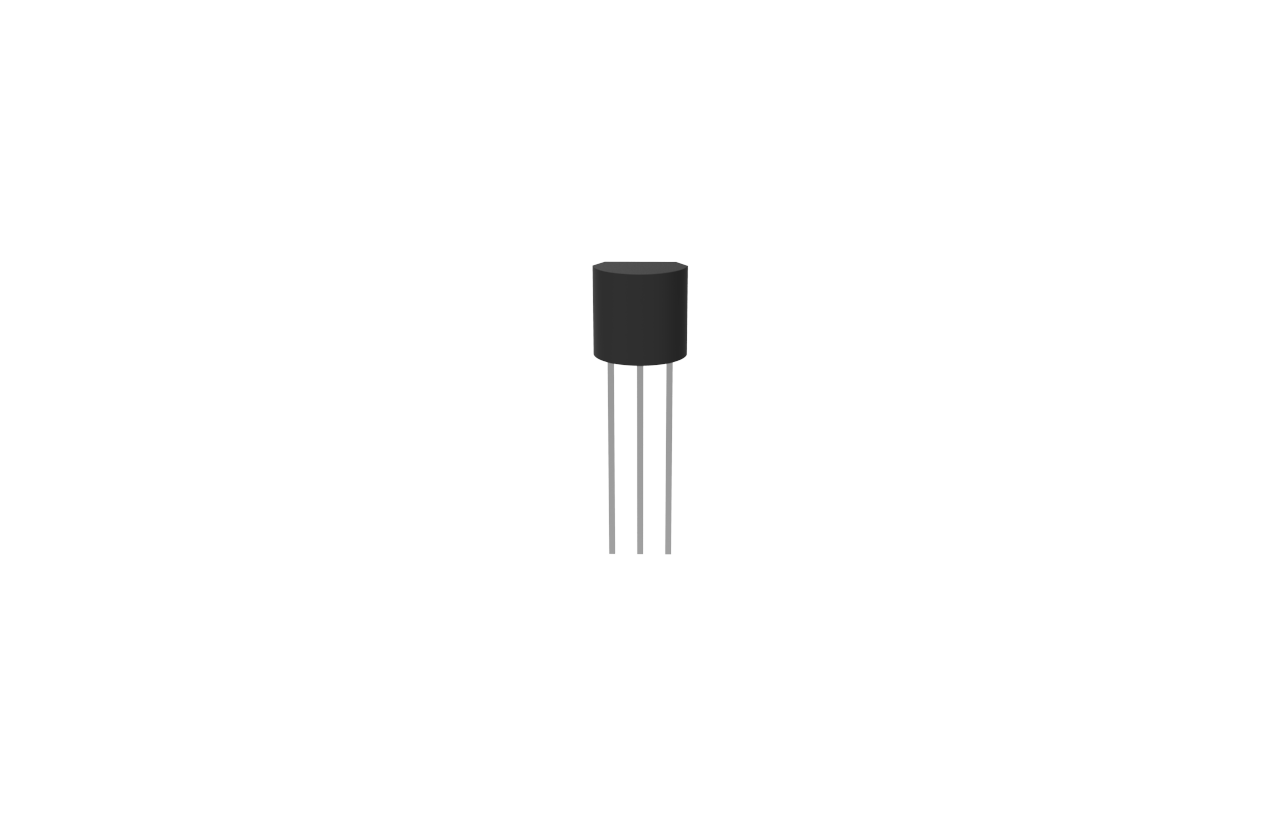

- Package Type:TO-92
- Packing Info:Bulk:1k/Bag,,100K/Ctn; T/B:2K/Ammo Box , 20K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC548A | Single | NPN | 0.625 | 30 | 0.1 | 110 | 220 | 0.3 | 150 | 150 |
| Part Number BC548A | Number of Functions Single | Polarity NPN | PD (W) 0.625 | VCEO(V) 30 | IC (A) 0.1 | HFE [min] 110 | HFE [max] 220 |
VCE(sat) [max] (V) 0.3 |
fT(MHz) 150 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
