Medium Power Bipolar Transistors | Status :
Obsoleted
BC327-40
Last Time Ship Date:03-28-2023
EOL Notice

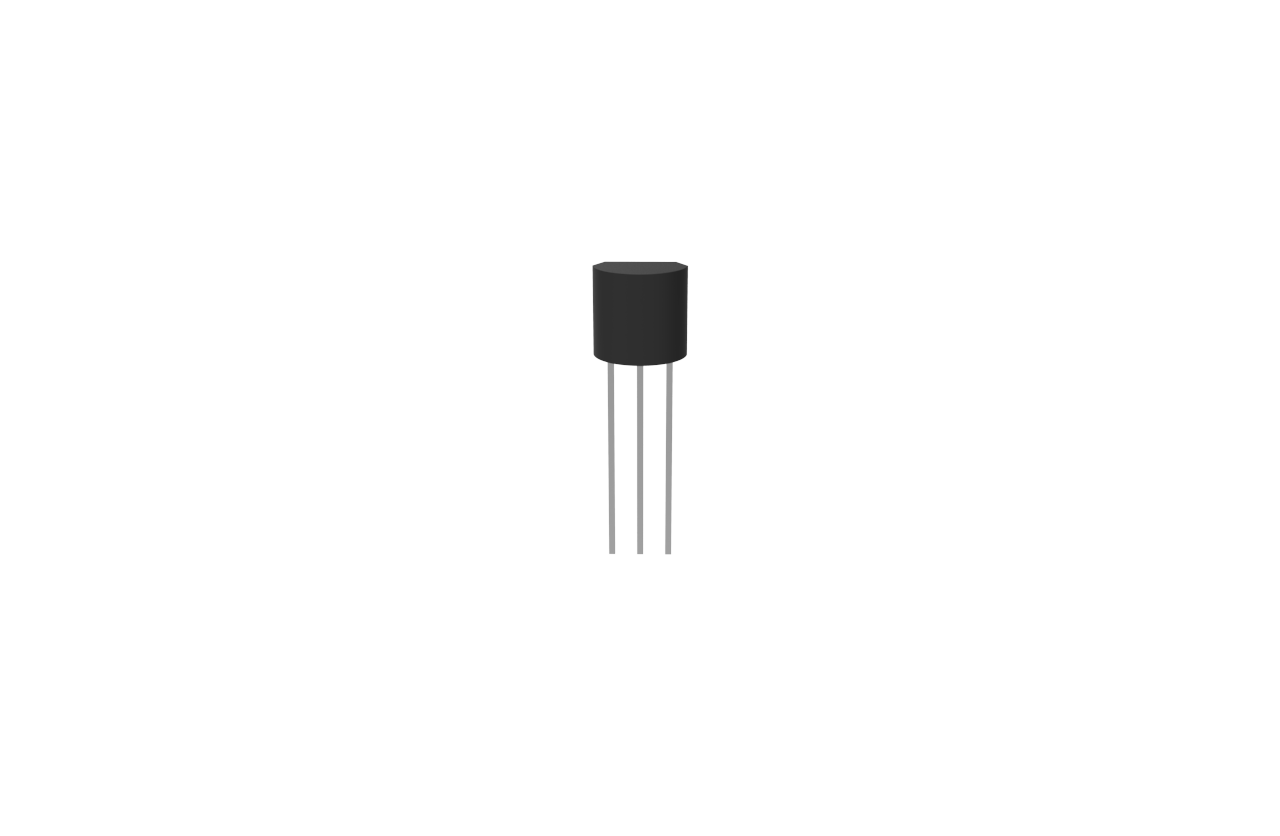

- Package Type:TO-92
- Packing Info:Bulk:1k/Bag,,100K/Ctn; T/B:2K/Ammo Box , 20K/Ctn;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC327-40 | Single | PNP | 0.625 | -45 | -0.8 | 250 | 630 | -0.7 | 260 | 150 |
| Part Number BC327-40 | Number of Functions Single | Polarity PNP | PD (W) 0.625 | VCEO(V) -45 | IC (A) -0.8 | HFE [min] 250 | HFE [max] 630 |
VCE(sat) [max] (V) -0.7 |
fT(MHz) 260 | Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
