Medium Power Bipolar Transistors | Status :
Obsoleted
2SD669A-C
Last Time Ship Date:08-01-2019
EOL Notice

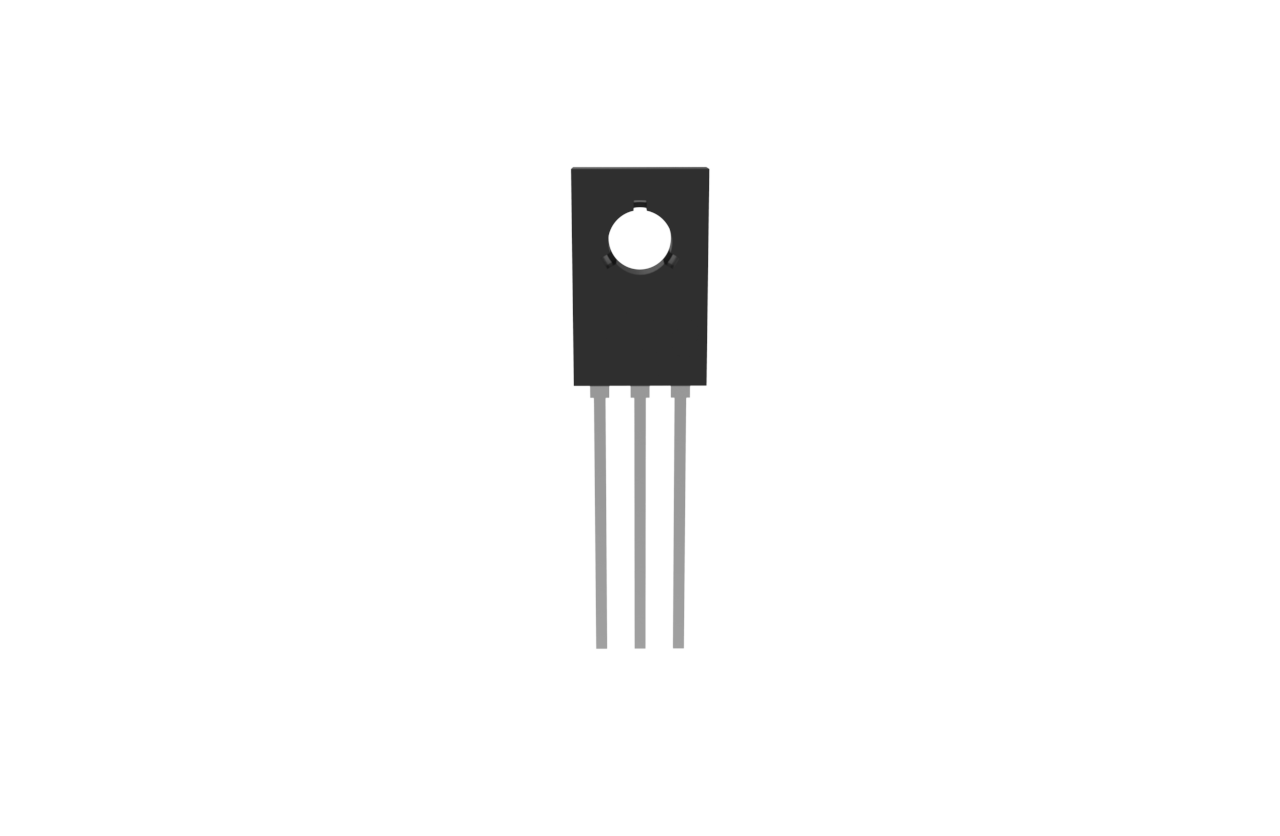

- Package Type:TO-126
- Packing Info:Tube:50pcs/Tube;
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2SD669A-C | Single | NPN | 1 | 160 | 1.5 | 100 | 200 | 1 | 140 | 150 |
| Part Number 2SD669A-C | Number of Functions Single | Polarity NPN | PD (W) 1 | VCEO(V) 160 | IC (A) 1.5 | HFE [min] 100 | HFE [max] 200 |
VCE(sat) [max] (V) 1 |
fT(MHz) 140 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| 2SD669A-C | TO-126 |
TO-126
|
0.9220 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
